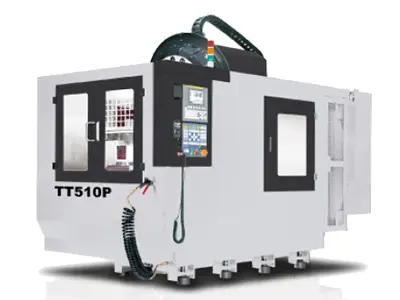

New - Build-To-Order LK MACHINERY TT-510P | Vertical Machining Centers

Have one to sell?
505-659-1703
info@therightmachinery.com
ConditionNew
0 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
LK MACHINERY
Model:
TT-510P
Condition:
Build To Order
Stock #:
323113
Status:
For Sale

Description

Specification TT-510P
X-axis Travel  510
Y-axis Travel 400
Z-axis Travel 310
Distance from spindle center to table surface (mm) 200-510 (Turret ATC)
Table dimension (mm) 610 x 400 (x2)
Max. table load (kgs) 250
Rapid traverse (m/min) 48/48/48
Spindle speed (rpm) 10000 (DDS)
Spindle nose BT-30
Spindle motor (kw) 3.7/5.5
Tool changer 14 (Turret type)
Machine dimension (mm) 1600 x 2800 x 2425
Machine weight (kgs) 4000

X20"508 mm
Y16"406.4 mm
Z12"304.8 mm
Power7.5 hp5.6 kW
RPM10,000 RPM10,000 RPM
# ATC1414
TaperBT-30BT-30
Table-W16"406.4 mm
Table-L24"609.6 mm
Dimensions5'2"X 9'2"X 7'11"5'2"X 9'2"X 7'11"
Weight8,800 Lbs8,800 Lbs
