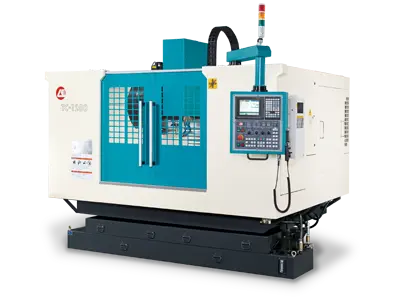

New LK MACHINERY TC-1200 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Specification TC-1200
X-axis Travel 1200
Y-axis Travel 410
Z-axis Travel 420
Distance from spindle center to table surface (mm) 200-620
Table dimension (mm) 1350 x 410
Max. table load (kgs) 300 (Each side)
Rapid traverse (m/min) 48/48/48
Spindle speed (rpm) 10000 (M / F)
Spindle nose BT-30
Spindle motor (kw) 5.5/7.5
Tool changer 20 (Cam type)
Machine dimension (mm) 3104 x 2713 x 2493
Machine weight (kgs) 5630
Specification TC-1200
X-axis Travel 1200
Y-axis Travel 410
Z-axis Travel 420
Distance from spindle center to table surface (mm) 200-620
Table dimension (mm) 1350 x 410
Max. table load (kgs) 300 (Each side)
Rapid traverse (m/min) 48/48/48
Spindle speed (rpm) 10000 (M / F)
Spindle nose BT-30
Spindle motor (kw) 5.5/7.5
Tool changer 20 (Cam type)
Machine dimension (mm) 3104 x 2713 x 2493
Machine weight (kgs) 5630
Imperial
| X | 47" |
| Y | 16.1" |
| Z | 16.5" |
| Power | 10 hp |
| RPM | 12,000 RPM |
| # ATC | 20 |
| Taper | BT30 |
| Table-W | 53" |
| Table-L | 16" |
| Dimensions | 122x107x98 |
| Weight | 13734 |
