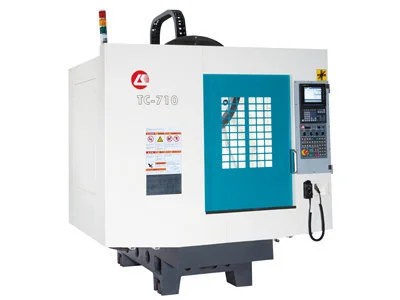

New LK MACHINERY TC-710 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Specification TC-710
X-axis Travel 710
Y-axis Travel 420
Z-axis Travel 350
Distance from spindle center to table surface (mm) 180-530
Table dimension (mm) 850 x 420
Max. table load (kgs) 250
Rapid traverse (m/min) 48/48/48
Spindle speed (rpm) 12000 (M / F)
Spindle nose BT-30
Spindle motor (kw) 3.7/5.5 (5.5/7)
Tool changer 14 (Turret type)
Machine dimension (mm) 2136 x 2540 x 2435
Machine weight (kgs) 2900
Specification TC-710
X-axis Travel 710
Y-axis Travel 420
Z-axis Travel 350
Distance from spindle center to table surface (mm) 180-530
Table dimension (mm) 850 x 420
Max. table load (kgs) 250
Rapid traverse (m/min) 48/48/48
Spindle speed (rpm) 12000 (M / F)
Spindle nose BT-30
Spindle motor (kw) 3.7/5.5 (5.5/7)
Tool changer 14 (Turret type)
Machine dimension (mm) 2136 x 2540 x 2435
Machine weight (kgs) 2900
Imperial
| X | 27.953" |
| Y | 16.535" |
| Z | 13.78" |
| Table-W | 16.535" |
| Table-L | 33.465" |
