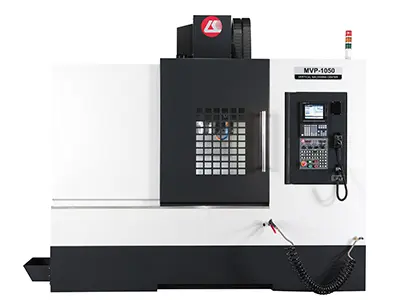

Specification MVP-1050
X-axis Travel 1050
Y-axis Travel 600
Z-axis Travel 560
Distance from spindle center to table surface (mm) 150-710
Table dimension (mm) 1250 x 600
Max. table load (kgs) 800
Rapid traverse (m/min) 48/48/36
Spindle speed (rpm) 10000 (DDS)
Spindle nose BT-40
Spindle motor (kw) 7.5/11
Tool changer 16 (High speed synchrony changing system)
Machine dimension (mm) 3000x2254x2839
Machine weight (kgs) 5300
