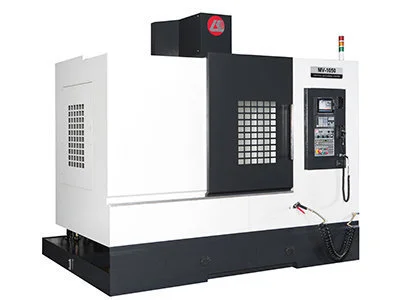

New LK MACHINERY MV-650 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Specification MV-650
X-axis Travel 650
Y-axis Travel 600
Z-axis Travel 560
Distance from spindle center 150-710
to table surface (mm)
Table dimension (mm) 850 x 600
Max. table load (kgs) 500
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 8000( Belt)
Spindle nose BT-40
Tool changer 20 (Carrousel type)
Machine dimension (mm) 2200 x 2768 x 2839
Machine weight (kgs) 4700
Specification MV-650
X-axis Travel 650
Y-axis Travel 600
Z-axis Travel 560
Distance from spindle center 150-710
to table surface (mm)
Table dimension (mm) 850 x 600
Max. table load (kgs) 500
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 8000( Belt)
Spindle nose BT-40
Tool changer 20 (Carrousel type)
Machine dimension (mm) 2200 x 2768 x 2839
Machine weight (kgs) 4700
Imperial
| X | 25.591" |
| Y | 23.622" |
| Z | 22.047" |
| Table-W | 23.622" |
| Table-L | 33.465" |
