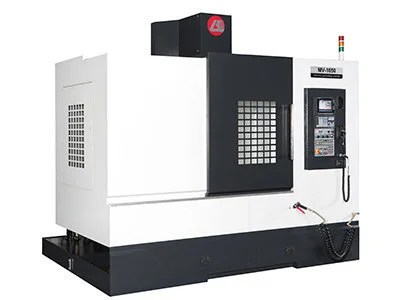

New LK MACHINERY MV-850 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Specification MV-850
X-axis Travel 850
Y-axis Travel 600
Z-axis Travel 560
Distance from spindle center 150-710
to table surface (mm)
Table dimension (mm) 1050 x 600
Max. table load (kgs) 600
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 8000( Belt)
Spindle nose BT-40
Tool changer 20 (Carrousel type)
Machine dimension (mm) 2600 x 2254 x 2839
Machine weight (kgs) 5000
Specification MV-850
X-axis Travel 850
Y-axis Travel 600
Z-axis Travel 560
Distance from spindle center 150-710
to table surface (mm)
Table dimension (mm) 1050 x 600
Max. table load (kgs) 600
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 8000( Belt)
Spindle nose BT-40
Tool changer 20 (Carrousel type)
Machine dimension (mm) 2600 x 2254 x 2839
Machine weight (kgs) 5000
Imperial
| X | 33.465" |
| Y | 23.622" |
| Z | 22.047" |
| Table-W | 23.622" |
| Table-L | 41.339" |
