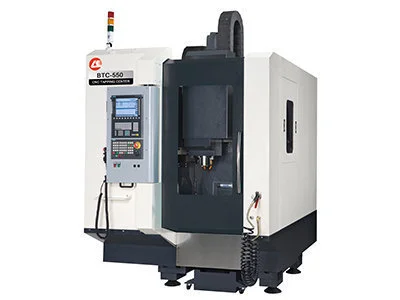

Specification BTC-550
X-axis Travel 550
Y-axis Travel 400
Z-axis Travel 420
Distance from spindle center to table surface (mm) 230-650
Table dimension (mm) 800 x 420
Max. table load (kgs) 600
Rapid traverse (m/min) 48/48/48
Cutting feedrate (m/min) -
Spindle speed (rpm) 12000 (DDS)
Spindle nose BT-30 (CAT-30)
Spindle motor (kw) 4.1 (Siemens)
Tool changer 20 (Arm type)
Machine dimension (mm) 3359 x 1750 x 2900
Machine weight (kgs) 4470
