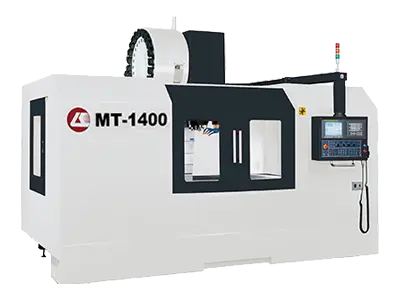

Specification MT-1400
X-axis Travel 1400
Y-axis Travel 750
Z-axis Travel 700
Distance from spindle center to table surface (mm) 200-900
Table dimension (mm) 1600 x 800
Max. table load (kgs) 2000
Rapid traverse (m/min) 24/24/20
Cutting feedrate (m/min) 1-10
Spindle speed (rpm) 7000 (Gear Head)
Spindle nose BT-50
Spindle motor (kw) 11/15
Tool changer 24 (Arm type)
Machine dimension (mm) 5450 x 3720 x 3220
Machine weight (kgs) 14000
