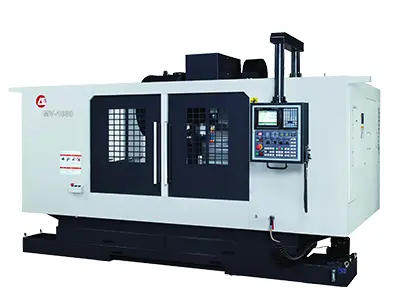

Specification MV-1680
X-axis Travel 1680 / (650+650)
Y-axis Travel 500
Z-axis Travel 585
Distance from spindle center to table surface (mm) 200-785
Table dimension (mm) 1830 x 500
Max. table load (kgs) 350/1200
Rapid traverse (m/min) 48/48/48
Cutting feedrate (m/min) 1-20
Spindle speed (rpm) 8000 (Belt Head)
Spindle nose BT-40
Spindle motor (kw) 7.5/11
Tool changer 24 (Arm type)
Machine dimension (mm) 3870 x 2736 x 2725
Machine weight (kgs) 9500
