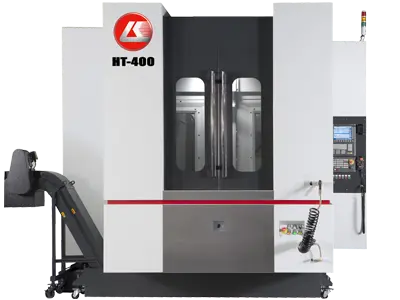

Specification HT-400
X-axis Travel 620
Y-axis Travel 560
Z-axis Travel 630
Distance from spindle center to table surface (mm) 80-640
Table dimension (mm) 400 x 400
Max. table load (kgs) 400
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 8000 (DDS)
Spindle nose BT-40/CAT-40
Spindle motor (kw) 15/18.5
Tool changer 60 (Round-Rail)
Machine dimension (mm) 5060 x 3555 x 2810
Machine weight (kgs) 14060
