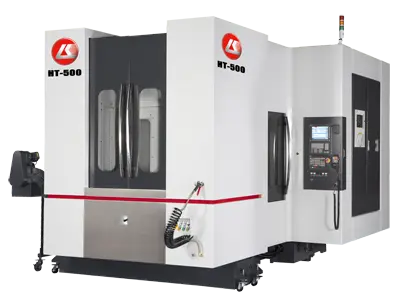

New LK MACHINERY HT-500 | Horizontal Machining Centers
Have one to sell?
ConditionNew
New
Specification HT-500
X-axis Travel 820
Y-axis Travel 720
Z-axis Travel 635
Distance from spindle center to table surface (mm) 120-840
Table dimension (mm) 500 x 500
Max. table load (kgs) 600
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 12000(DDS)
Spindle nose BT-40/CAT-40
Spindle motor (kw) 15/18.5
Tool changer 60 (Round-Rail)
Machine dimension (mm) 5135 x 3555 x 2810
Machine weight (kgs) 14260
