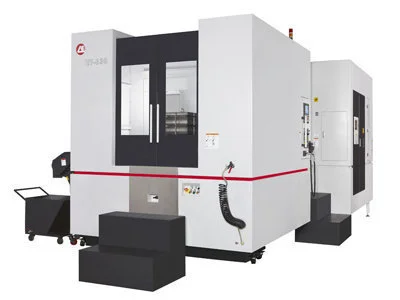

Specification HT-630
X-axis Travel 1050
Y-axis Travel 900
Z-axis Travel 1000
Distance from spindle center to table surface (mm) 120-1020
Table dimension (mm) 630 x 630
Max. table load (kgs) 1000
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 10000(DDS)
Spindle nose BT-50/CAT-50
Spindle motor (kw) 22/26
Tool changer 60 (Chain)
Machine dimension (mm) 6030 x 4000 x 3600
Machine weight (kgs) 29000
