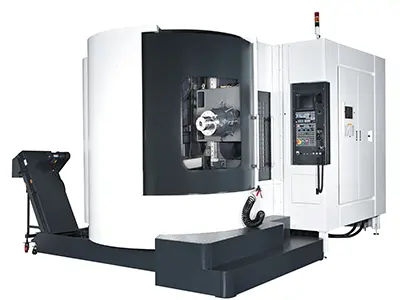

Specification HT-500SP
X-axis Travel 820
Y-axis Travel 610
Z-axis Travel 640-1000
Distance from spindle center to table surface (mm) 85-685
Table dimension (mm) 500 x 500
Max. table load (kgs) 500
Rapid traverse (m/min) 36/36/36
Spindle speed (rpm) 10000 (DDS)
Spindle nose BT-40
Spindle motor (kw) 15/18.5
Tool changer 60 (Carousal type)
Machine dimension (mm) 5135 x 3555 x 2810
Machine weight (kgs) 13734
