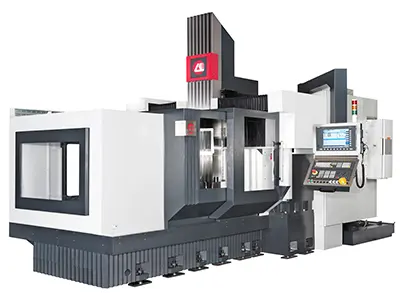

New LK MACHINERY EU-2000 | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionNew
New
Specification EU-2000
X-axis Travel 2000
Y-axis Travel 1250
Z-axis Travel 650
Distance from spindle center to table surface (mm) 800
Table dimension (mm) 2000 x 1000
Max. table load (kgs) 2500
Rapid traverse (m/min) 30/30/30
Cutting feedrate (m/min) 10
Spindle speed (rpm) 18000
Spindle nose HSK-A63
Spindle motor (kw) 46
Tool changer 24
Machine dimension (mm) 7000 x 3750 x 4400
Machine weight (kgs) 19000
Specification EU-2000
X-axis Travel 2000
Y-axis Travel 1250
Z-axis Travel 650
Distance from spindle center to table surface (mm) 800
Table dimension (mm) 2000 x 1000
Max. table load (kgs) 2500
Rapid traverse (m/min) 30/30/30
Cutting feedrate (m/min) 10
Spindle speed (rpm) 18000
Spindle nose HSK-A63
Spindle motor (kw) 46
Tool changer 24
Machine dimension (mm) 7000 x 3750 x 4400
Machine weight (kgs) 19000
Imperial
| X | 78.74" |
| Y | 49.213" |
| Z | 25.591" |
| Table-W | 39.37" |
| Table-L | 78.74" |
