• 3-HP Spindle Motor
• Spindle Speeds from 70 – 2000 RPM
* 4.5" Gap-bed
• 8-Spindle Speed Gear-Ranges for High-Torque
• Safety Foot Brake
• Includes Full-Length Back Splashguard
• MT#3 Tailstock Included for Shaft Work

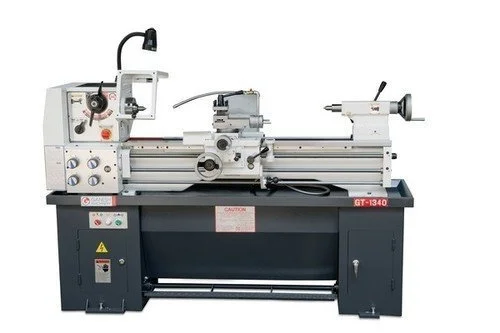

MACHIINE SPECIFICATIONS: GTW-1340
Capacity & Dimensions -
Swing over Bed 13”
Center height 6-1/2”
Swing over Cross Slide 7-25/32”
Swing thru Gap 18-3/4”
Length of Gap in front of face plate, D1-4 4-1/2”
Distance between Centers 40”
Bed casting width, length, depth 7-3/8”, 65-1/8”, 11-13/32”
Spindle -
Spindle Motor Horsepower 3-HP
Spindle speeds – 8-speed geared head 70 – 2,000 rpm
Spindle Bore 1-1/2”
Spindle Nose D1-4
Spindle taper in spindle nose MT-5 Morse Taper-5
Carriage -
Cross slide travel 6 - 5/16” 160 mm
Cross slide width 4 – 5/8” 118 mm
Cross slide lead screw pitch 8 TPI
Cross slide resolution per division 0.25”/rev. (On diameters)
Carriage lead screw diameter / pitch 7/8” / 8 TPI 22 mm / 3 mm pitch
Feed rod dimension 3/4” hexagon 19 mm hexagon
Compound -
Compound top slide travel 2-11/16” 68 mm
Compound top slide width 3” 76 mm
Cutting tool height maximum 5/8” x 5/8” 16 mm x 16 mm
Tailstock - Engraved with inch / metric quill graduations
Quill diameter 1-21/32” 42 mm
Quill stroke 4-1/2” 114 mm
Quill taper MT-3 Morse Taper #3
Quill tang drive and drift-slot for tailstock included
Tailstock body set-over adjustment ±0.04” ± 1 mm
Thread Cutting -
Thread cutting range – 31 inch pitches 4 – 56 TPI
Thread cutting range – 26 metric pitches 0.4 – 7 mm
Thread cutting range – 32 diametral pitches 8 – 120 D.P. (optional)
Thread cutting range – 21 module pitches 0.2 – 3 M.P. (optional)
Feeds - (With Clutched Feed Shaft for Safety)
Feeds – longitudinal - 32 feeds 0.002” – 0.548”/rev.
Feeds – cross - 32 feeds 0.0007” – 0.0187”/rev.
Weight & Dimensions -
Machine Dimensions – L x W 76-3/8” x 29-3/4” (1,940 x 755 mm)
Machine height 48-3/4” 1,238 mm
Overall machine weight 1,345 lbs. 610 kgs
Electrical power requirements 220 volts, 3-Phase @ 8.50 amps
INCLUDED WITH GT-1340 MACHINE
6” 3-jaw scroll chuck
8” 4-jaw independent chuck
Steady Rest Capacity :10 – 90mm
(With Brass Contact Pads)
Follower Rest
Full Length Splash Guard
Foot brake
4-Way Tool Post w/wrench
Chuck Guard w/ Micro Switch
Machine Leveling Pads
Special Value Package
GTW-1340 13” X 40” Engine Lathe with Value Package $13,990.00
Includes:
o Newall 2-Axis Digital Readout Installed
o Wedge-Type Quick-Change tool post installed, size BXA with 3” square base & 5-toolholders
Machine Options
Factory machine installation: “Peace-of-Mind Factory Installation” –
includes expenses $2,995.00
Wiring machine for 440-volt service. (Net price) $495.00
Newall 2-Axis Digital Readout Installed $3,495.00
16-piece 5C Collet set $495.00 Live Center MT-3 $695.00
JACOBS® Drill Chuck and Arbor, ½” capacity $295.00
Collet Closer (JFK) quick-action lever style - installed $1,750.00
Wedge-Type Quick-Change tool post installed, size BXA import with 3” square base & 5-toolholders 1-ea.) 5/8” Turn/Face, 5/8” Bore/Turn/Face, H-D 5/8” Bore, 5/8” Knurl/Turn/Face, Part-Off $595.00
Dorian Wedge-Type Quick-Change tool post installed, size BXA with 3” square base & 4-toolholders 2 ea. Turn/Face toolholder, 2 ea., Bore/Turn/Face toolholder $1,195.00
Warranty –1 full year parts warranty on the machine.
Labor warranty will be provided by your local servicing distributor.
Parts – Spare parts are available at our facility in Chatsworth to support your continued machine operation.
F.O.B. Point – Machines ship F.O.B. from Chatsworth, CA 91311.
Payment Terms – 30% down payment with your Purchase Order secures the machine. 60% is due prior to machine shipment, and the 10% balance is due after installation or the machine
