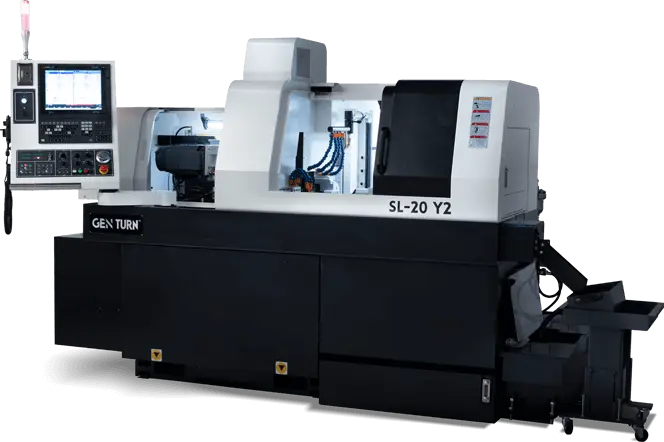

+ Double “Y” Axis and Double “C” Axis
+ Simultaneous Main & Sub-Spindle Machining
+ 30-Tools with 8-Driven Tools Standard
+ Removable Rotary Synchronous Guide-Bushing
+ Cutting Oil Chiller for Consistent Thermal Stability
+ High-Performance Mitsubishi M-830 Control
MAIN SPINDLE
Maximum RPM / Spindle Bearing
10,000 RPM / 5 Bearing Spindle, 3 Front, 2 Rear Ball Bearings
Main Spindle Servo Moto (2.2 / 3.7 kw)
5 HP 15 min Duty Rated (3 HP Constant Duty Rated)
Collet Style for Main & Subspindle
Hardinge TF-25S / Southwick & Meister TS-25 / Star SR-20
Collet Actuation System
Pneumatic Piston-Driven Toggle Clamp Feed-Finger Style
Synchronous Rotary Guide Bushing
TD25S (20 mm Round, 16 mm Hex, 12 mm Square)
Maximum Barstock Diameter
20 mm (Collet Range – 1/16” – 13/16” / 0.0200” – 0.813”)
Maximum Distance Between Spindles
23.6” (600 mm)
Spindle Centerline Height
42” (1,060 mm)
MAIN SPINDLE TOOLING
OD Turning Tool Holders – S1
6 – 12 mm Square Shank Turning Tool Holders
ID Internal Tool Holders – S1
4 – 22 mm Shank Round Tool Sleeve Bores
ID Deep Hole Drill Positions – S1
2 – 22 mm Shank Round Tool Sleeve Bores
Cross Slide Live Tools – S1
5 – ER-16 Cross Slide Live Tools, 8,000 RPM, 1.6 HP (1.2 kw)
Axial Front Slide Live Tool Option – S1
3 – ER-16 Front Slide Live Tools – Optional in lieu of 1 Cross Tool
Maximum Drilling / Tapping Capacity
10 mm Drilling Capacity / M8 Tap – Main Spindle
Cross Drilling / Tapping Capacity
8 mm Drilling Capacity / M6 Tap – Driven Cross Tools
SUB-SPINDLE
Sub-Spindle RPM / Spindle Bearing
8,000 RPM / 4-Bearing – Quad-Duplex Pair Configuration
Sub-Spindle Servo Moto (2.2 / 3.7 Kw)
5 HP 15 min Duty Rated (3 HP Constant Duty-Rated)
Collet Style for Main & Sub-Spindle
Hardinge TF-25S / Southwick & Meister TS-25 / Star-SR20
Collet Actuation System
Pneumatic Piston – Driven Toggle Clamp Feed – Finger Style
Maximum Barstock Diameter
20 mm (Collet Range – 1/16” – 13/16” / 0.0200” – 0.813”)
Finished Parts Ejector & Air Blast
Included (Can Pass Long 20 mm Parts Through the Subspindle)
Maximum Workpiece Length for Front Ejection
110 mm Maximum Part Length for Front Ejection from Subspindle
SUB-SPINDLE TOOLING
OD Turning Tool Holders – S2
3 – 10 mm Square Shank Turning Tool Holders
ID Internal Tool Holders – S2
4 – 22 mm Shank Round Tool Sleeve Bores
ID Internal Tool Holders – S2 (8 possible)
3 – ER-16 Fixed Tools – Ø3/8” Max.
Sub-Spindle Axial Live Tools – S2 (8 possible)
3 – ER-16 Axial Live Tools, 4,000 RPM, 1 HP (0.75 kw)
Backworking Machining Length
6.1” Maximum Turning Length / 3.14” Maximum Boring Length
Maximum Drilling / Tapping Capacity
10 mm Drilling Capacity / M8 Tap – Sub Spindle
Maximum Cross Drilling / Tapping Capacity
8 mm Drilling Capacity / M6 Tap – Driven Cross Tools
AXIS
Main Spindle Stroke
9.840” Single Stroke (250 mm)
Maximum Turning Length – Rotary Bushing
7.48” (190 mm)
Maximum Turning Length – Without Bushing
2.36” (60 mm)
X1, Y1, Z1, X2, Y2, Z2 Rapid Traverse Rate
944 IPM (24 m / minute)
X1, Y1, Z1 Axis Motor Power
1 HP (0.75 kw)
X2, Y2, Z2 Axis Motor Power
.67 HP (0.5 kw)
Minimum Input Unit
0.0001” (0.001 mm = 40 millionths/inch)
SPECIFICATIONS
Machine Dimensions (L x W x H)
118” x 55” x 78” (2,846 x 1,284 x 2,024) + 31” for Conveyor
Machine Weight (Heaviest in Class)
5,954 lbs (2,700 kgs)
Coolant Pump Power
1.5 HP (1.2 kw)
Coolant Tank Capacity
58 gallon Coolant Tank (220 L) (Cutting Oil Only, No Coolant)
Lubrication Distribution (2-liter Capacity)
Way Lube Distributed at 3 – 6 cc / 15 min Cycle
Machine Power Requirements
220 vac ±5%, 53 amps, 20 kVA, 3 phase, 60 Hz
Air Requirements
85 PSI at 6 CFM for Parts Catcher, Parts Ejector, & Air Blast
Machine Power Requirements
220 vac ±5%, 63 amps, 3 phase, 60 Hz
Air Requirements
85 PSI at 10 CFM for Parts Catcher, Parts Ejector, & Air Blast
