+ 36 mm 1-3/8” Bar Capacity
+ 18-Tools with 7-Driven Tools Standard
+ “C” Axis and “Y” Axis with 19” Travel
+ 1,181 Inch per Minute Rapid Rates
+ Parts Catcher and Chip Auger Included
AXIS TRAVEL
CNC Controlled Axis
4-Axis (X, Y, Z, C) with High-Performance C-Axis
X-Axis Travel (Vertical Tool)
7.5” (190 mm) Linear Ways
Y-Axis Travel (Cross Tool)
19.3” (490 mm) Linear Ways – True Y-Axis
Z-Axis Travel (Sliding Headstock)
6.5” (165 mm) Linear Ways
C-Axis Travel (Rotational Axis)
360 degrees (360,000 Radial Positions)
SPINDLE
Spindle Bore
1.456” (37 mm)
B&S#22 or Traub A-32 Collet Capacity
1.25” (32 mm), 1-3/8” (36 mm) Collet Adapter Available
Spindle Speed Range
100 – 6,000 RPM
Spindle Horsepower
10 HP 3,000 RPM Spindle Motor (2:1 Pulley Ratio)
Spindle Center Height
38” (965 mm)
Rigid Tapping on Main Spindle
Yes
Spindle bearing (Ø110mm)
5 Ball Bearing Spindle, 3 Front & 2 Rear Bearings
TOOLING SYSTEM
Number and Size of Turning Stations
6 Tools of 1/2” or 12 mm (5 stations of 5/8” Optional)
Number of Internal Static Tools
5 ID Tool Stations (25 mm Bores) for Tool Bushings/Collets
ID Tool Bores (Round Shank)
25 mm Bore for ER-20 Collet, Split or Solid Tool Bushings

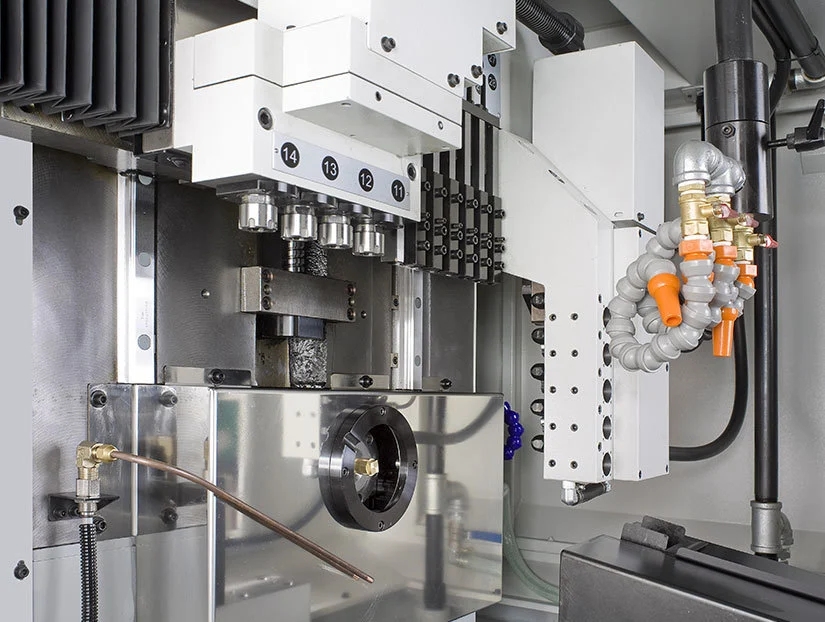

DRIVEN TOOL SYSTEM
Number of Cross Working Driven Tools
4 Cross Driven Tool Stations with ER20 Collet Holders
Number of End Working Live Tools
3 Axial Driven Tool Stations with ER20 Collet Holders
Size of Driven Tools (Round Shank)
ER-20 Collet Capacity (1/16” –1/2”) (1-13 mm) Diameter
Rigid Tapping with Driven Tools
Included for Main Spindle and Driven Tools
Driven Tool Programmable Range
0 – 4,000 RPM – Step-Less Speed Range
Driven Tool HP
Radial 2.0 HP (1.5 kw), Axial 1.0 HP (0.75 kw)
AXIS DRIVES
Rapid Travers Rate – X, Y, & Z axis
1,181 IPM (30 m / min)
Maximum Federate for Thread Cutting
236 IPM (6 m / min)
Minimum Programmable Input
0.0001” (0.001 mm = 40 millionths of an inch)
C-Axis Resolution
0.001 degree (360,000 Radial Positions)
Brushless AC Servo Motor Drive
X = 2 HP (1.5 kw), Y&Z = 1.5 HP (1.0 kw)
Ballscrew Diameter
25 mm Diameter – 10 mm Pitch Double-Nut Ballscrews
SYSTEM REQUIREMENTS
Electrical Requirements
16 kVA – 42 amps @ 220 vac ±5% 3 Phase
Pneumatic Requirements
85 PSI @ 10 cfm for Parts Catcher and Spindle Brake
Hydraulic System Capacity
10 gallon (40 liter) Hydraulic Tank, 500 PSI Pressure
Coolant Pump Motor / Tank Capacity
3/4 HP w/ Flow Sensor / 50 gallon Tank with Dual Filtration
Automatic Metered Lubrication system
3 – 6 cc/ 15 min (Adjustable Lubrication Flow Rate)
MACHINE DIMENSIONS
Floor Space – L x W x H
86” x 74” x 76” (2,176 x 1,858 x 1,919 mm)
Machine Spindle Center Height
38” (965 mm)
Machine Net Weight
6,172 lbs (2,800 kgs)
