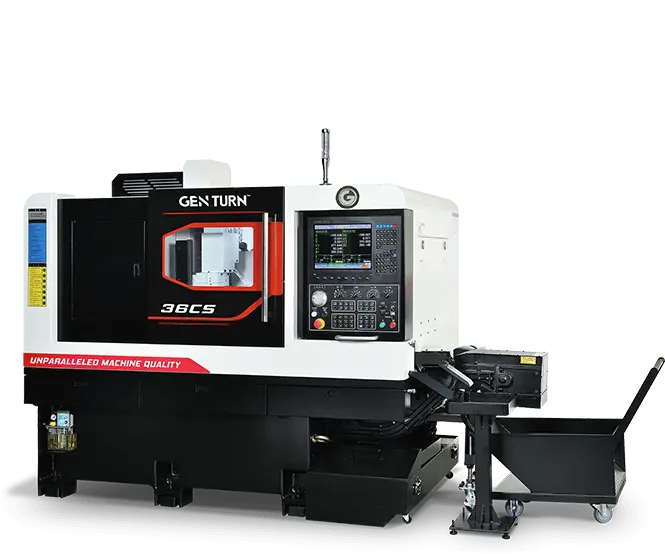

GENTURN 36CS 7-AXIS CNC SWISS MACHINE WITHOUT GUIDE BUSHING

MAIN SPINDLE
Maximum RPM / Spindle Bearing
6,000 RPM / 5 Bearing Spindle, 3 Front, 2 Rear ø110 mm

Spindle Motor
10 HP 3,000 RPM spindle Motor, 2:1 Pulley Ratio

Collet Nose
Brown & Sharpe #22 or Traub A-32

Drawtube Bore
1.456” (37 mm)

Maximum Barstock Diameter
1.25” (32 mm) Standard 1.375” (36 mm) with Adapter

X-Axis Travel
7.28” (185 mm)

Y-Axis Travel (true Y-Axis, not compound Y)
19.29” (490 mm)

Z-Axis Travel
6.50” (165 mm)

Rapid Travel Speed: X, Y, Z
1,181 IPM (30 m / min)

Minimum Input Unit
40 millionths (0.00004”) (0.001 mm)

OD Turning Tool Positions
6 OD Tools (1/2” or 12 mm) (5-5/8” Tool Plate Available)

ID Turning Tool Positions
5 ID Tools

OD Turning Tool Size
1/2” or 12mm (5/8” or 16 mm Optional)

ID Turning Tool Bore Size
25 mm

Spindle Center Height
40” (1,015 mm)

SUB SPINDLE
Sub Spindle RPM/Spindle Bearing
6,000 RPM / 4-Bearing / Quad-Duplex Pair Configuration

Sub Spindle Motor
5-HP 3,000 rpm Spindle motor, 2:1 pulley ratio

Collet Nose
Brown & Sharpe #22 or Traub A-32

Maximum Barstock Diameter
1.250” in Collet Chuck (1.080” (27.5mm) Pass Thru)

X-Axis Travel
11.53” (293mm)

Z-Axis Travel
11.61” (295mm)

Minimum Input Unit
0.0001” (0.001mm = 40 millionths inch)

ID Turning Tool Bore Size
25mm

Air Blast Nozzle
Included

Finished Parts Ejector
Included, Along with Parts Catcher & Parts Conveyor Belt

LIVE TOOLING
Cross Slide Live Tools
4-ER-20 Cross Slide Live Tools, 4,000 RPM, 2.0 HP (1.5 kw)

Front Slide Live Tools
3-ER-20 Front Slide Live Tools, 4,000 rpm, 1.0 HP (0.75 kw)

Live Tool Collet Size
ER-20 Collet, Ø1/2” (0.5 – 13 mm) Tool Shank Capacity

Max RPM for Live Tools
4,000 RPM (1 cross live tool can be substituted on subspindle tool block)

MACHINE DIMENSIONS
Machine Length
101” (2420mm) ( *+ 36” for Chip Conveyor)

Machine Depth
68” (1500mm)

Machine Height
80” (1985mm)

Machine Weight
8,000lbs (3,628kgs)

Coolant Pump
Dual 50psi 3/4-HP Coolant Pumps for Main and Subspindle

Coolant Tank Capacity
63-gallon Coolant Tank, with Coolant Flow Confirmation Sensor

Lubrication Distribution
Way Lube Distributed at 3-6 cc / 15-minute Cycle

Machine Power Requirements
220vac ±5%, 63-amps, 3-phase, 60Hz

Air Requirements
85-PSI at 10-CFM for Parts Catcher, Parts Ejector, & Air Blast
