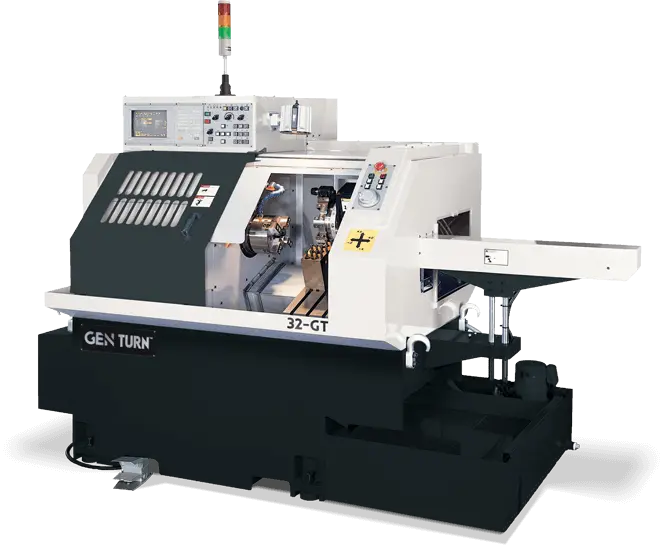

+ 32 mm 1-1/4” Bar Capacity
+ 6,000 RPM A2-5 Spindle
+ 7.5 Horsepower
+ Parts Catcher Standard
+ Live Tooling Options
+ 8-Station Turret Optional
MAIN SPINDLE
X-Travel
8.46” (215 mm)
Z-Travel
5.98” (152 mm)
Maximum Turning Diameter/Length
7.87” / 5.5” (20 0mm / 140 mm)
Swing Over Bedways
12.59” (320 mm)
AXIS FEEDS
Rapid Traverse – X, Z
787 IPM 20 m / min
Rated Cutting Feedrate
236 IPM 6 m / min
Mechanical Way System – X / Z
Box Ways / Turcite® Coated & Pressure Lubricated
Slant Bed Angle
20º Slant Bed Angle for Tooling
Axis Drive Motor Power – X-Axis
1.0 HP .75 kw
Axis Drive Motor Power – Z-Axis
1-1/3 HP 1.0 kw
Ballscrew Diameter – X, Z
32 mm
Positioning Accuracy – X / Z – X / Z
±0.00015” / ±0.004 mm
Positioning Repeatability – X / Z
±0.00008” / ±0.002 mm
Least Input Command Increment
0.0001” / 0.000040” / 0.001 mm / (40-millionths in metric)
SPINDLE
Spindle Nose Mount
A2-5
Spindle Speed
6,000
Maximum Tapping Spindle Speed
2,000 RPM
Maximum Bar Capacity
1-1/4”, 32 mm
Spindle Bore
34 mm
Spindle Bearing – Inside Diameter
70 mm (80 mm Optional)
Spindle Motor Power – 3.7 / 5.5 kw
7.5 HP / 5.5 kw (10 HP 7.5 kw Spindle Motor Optional)
Spindle Motor Torque
26 ft. lbs 35 Nm
Spindle Motor Drive Coupling
Belt Drive
Spindle Runout
≤ 0.000040” T.I.R.
TOOL PLATE / TOOL SYSTEM
Tool Plate Overall Dimensions
8.66” x 36.45” / 220mm x 706mm
Tool Plate T-Slot Dimensions
21mm Base & 12mm Neck Width, (8mm Base Height /17mm total)
T-Slots
3 T-Slots on 63mm Centers (See Power Point for Drawings)
Turning Tool Shank Size
20mm 3/4” Square Shank
Internal Tool Shank Size
32mm 1-1/4” (25mm for Optional Tool Turret Bores)
Optional Driven Tool Horsepower (.75kw)
1-Horsepower with 2:1 Speed Reduction for Increased Torque
Optional Driven Tool Collet Size (1/2”)
2-ER20 Collets in a Hydraulic Positioned Upper/Lower Format
SPECIFICATIONS
Air Service Requirements
85 PSI @ 5 scfm / 5.5 kg / cm²
Electrical Requirements – Connected Load
10 kVA, 28 amps, 220 vac ±5%, 60 Hz
Coolant Tank Capacity / Motor Power
21 gallons / 1/2 HP / 80 Liters / 2 amps
Lubrication Pump
150 watts
Hydraulic Pump Motor / Pressure
1 HP / 500 PSI / .75 kw / 32 bar
Floor space requirements (W x D x H)
81” x 64” x 64” / 282 x 135 x 183 cm (+ Chip Conveyor)
Machine Weight
4,850 pounds (2,200 kg)
Warranty – 1-year machine warranty
3-year Mitsubishi Control, Motors, & Drive Warranty
