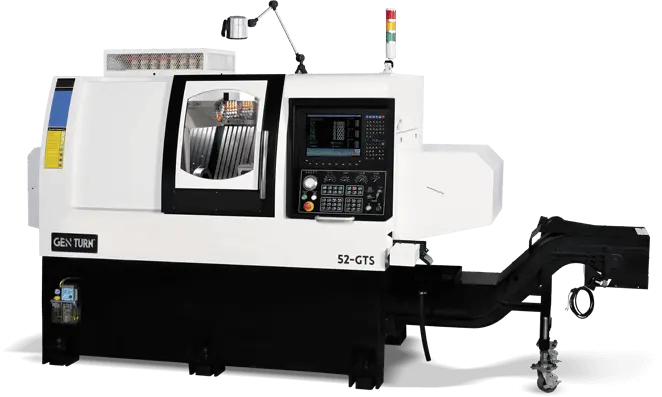

+ 52 mm 2” Bar Capacity
+ Twin 15 HP 6,000 RPM Opposed Spindles
+ Dual Parallel Gang-Tooled Cross-Slides
+ Simultaneous Main & Sub-Spindle Machining
+ “C”-Axis on both spindles for Live Tooling Options
+ Faster than a Twin-Spindle Twin-Turret Lathe
MAIN & SUB SPINDLE
Spindle Motors: 11 kw 30 min rated
15 HP (Spindle Motor Chiller Included)
Maximum RPM
6,000 RPM with Spindle Orient
Spindle Bearing
5 Bearing Spindle, 3 Front Ball Bearings, 2 Rear
Spindle Nose
A2-5
Collet Nose
Traub A-52 (3J, 22J, 16C, S20 adapters available)
Drawtube ID
2.086” (53 mm)
Collet Capacity
2.047” (52 mm)
Spindle Center Height to Cross Slide
3.464” (88 mm)
Spindle Center Height to Floor
42.2” (1,070 mm)
MACHINE AXIS
Axis Drives & Motors (1.0 kw)
1.35 HP Mitsubishi Mel-Pro Motors and Drives
X-Axis Travel: Twin Cross-Slides
13” (330 mm) on Both Gang Slides
Z-Axis Travel: Twin Opposed Spindles
10.63” (270 mm) (on Both Main and Subspindle)
Axis Servo Motor Power
X-Axis 2.0 HP (1.5 kw), Z-Axis 1.5 HP (1.0 kw)
Rapid Travel Speed – X & Z
1,181 IPM (30 m / min)
Z-Axis Thrust
714 lbs Thrust (8,574 in / lbs )
Minimum Input Unit
0.0001” (0.001 mm = 40 millionths of an inch)
TOOLING
OD Turning Tool Size
3/4” Standard
ID Turning Tool Size
20 mm (3/4” Available)
Cross-Slide T-Slot dimensions
5-T-Slots on 32mm Centers (10 mm Slot, 18 mm Base)
FLUID SYSTEMS
Coolant Tank Capacity
52 Gallons (210 L) with Coolant Flow Monitor
Coolant Pump
Dual 3/4 HP, 45 PSI Pumps (for Main and Subspindle)
Hydraulic System: (550 PSI)
10 gallons (45 liters) ISO VG32 (Mobil DTE-24)
Spindle Oil Cooler System
5.5 gallons (25 liters) ISO 10 (Mobil Velocite No. 6)
Way Lubrication Distribution (ISO-VG68)
.5 gallons (2 liters) Distributed at 3 – 6 cc / 15 min Cycle
MACHINE DIMENSIONS
Length
118” (2,980 mm) + 25″ Chip Conveyor
Width
54” (1,356 mm) + 21” Coolant Tank
Height
78” (1,760 mm)
Net Weight
9,922 lbs (4,500 kg)
MACHINE REQUIREMENTS
Power Requirements
220 vac ±5%, 3 Phase, 60 Hz, 63 amps, 24 kVA
Air Requirements
85 PSI, 10 cfm (Parts Catcher, Parts Ejector, Air Blast)
