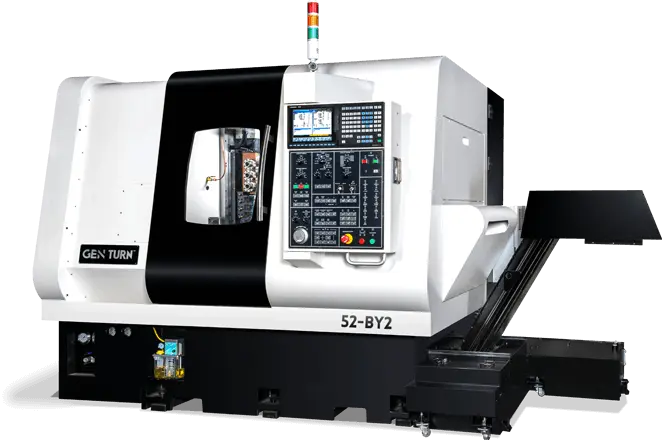

+ 52 mm 2” Bar Capacity
+ Twin 15 HP 6,000 RPM Opposed Spindles
+ 36-Tool Positions - 18-Driven Tools
+ Machine at Any Angle with 12-Tool “B”-Axis
+ “B” Axis and Dual “Y” Axis for Front & Back Work
+ Simultaneous Main & Sub-Spindle Machining
MAIN SPINDLE
Maximum Bar Diameter
A2-5 Spindle with 2.008” (51 mm) Bar Capacity
Collet Size / Spindle Bearings
Traub TRB-52 / 5 x 90 mm Ball Bearings, 3 Front, 2 Rear
Maximum Spindle Speed
6,000 RPM (Integral Motor Spindle)
Servo Spindle Motor Horsepower
15 HP (11 kw) Peak, 10 HP (7.5 kw) 30 min Rated
X1, Y1, Z1 AXIS
X1, Y1, Z1 Axis Servo Motor
X1 = 1.3 HP (1.0 kw), Y1 /Z 1 = 2.0 HP. (1.5 kw)
X1 Axis Travel
10.63” (270 mm)
Y1 Axis Travel
18.11” (460 mm)
Z1 Axis Travel
9.84” (250 mm)
Minimum Programmable Input
0.00004” resolution (0.001 mm)
X1, Y1, Z1 Rapid Travel Rate
1,181 IPM (30 m / min) / 0.0001 mm resolution
MAIN SPINDLE TOOLING
Number of Driven Tools
6 axial & 6 radial driven and “Any-Angle” tools
Driven Tool Motor Power
5 HP (3.5 kw)
Driven Tool Spindle Speed
2,500 RPM Maximum Driven Tool Spindle Speed
Driven Tool Collet Size
ER-20 Collet Spindles (up to 1/2” Tool Shank)
OD Turning Tools
5 – 20 mm OD Turning Tool Holders Available
ID Boring Tools
5 – 25 mm ID Bores Available for Tool Bushings
SUB-SPINDLE
Maximum Bar Diameter
2.008” (51 mm)
Collet Size
Traub TRB-52
Maximum Spindle Speed
6,000 RPM (Integral Motor Spindle)
Servo Spindle Motor Horsepower
15 HP (11 kw) Peak, 10 HP (7.5 kw) 30 min rated
X2, Y2, Z2 AXIS
X2, Y2, Z2 Axis Servo Motor
X2 / Z2 = 1.3 HP (1.0 kw), Y2 = 2.0 HP (1.5 kw)
X2 Axis Travel
18.89” (480 mm)
Y2 Axis Travel
18.11” (460 mm)
Z2 Axis Travel
10.63” (270 mm)
X2, Y2, Z2 Rapid Travel Rate
1,181 IPM (30 m/ min)
Minimum Programmable Input
0.0001” (0.001 mm = 40 millionths of an inch)
Ballscrew Diameter
25 mm Diameter with 10mm Pitch for All Axes
SYSTEM REQUIREMENTS
Number of Axial Driven Tools
3 Axial Driven Tools, Uses ER-20 Collets
Number of Radial Driven Tools
3 Radial Driven Tools, Uses ER-20 Collets
Driven Tool Motor Power
2.7 HP (2.0 kw)
Driven Tool Spindle Speed
2,500 RPM Maximum Driven Tool Spindle Speed
Driven Tool Collet Size
ER-20 Collet Spindles (up to 1/2” Tool Shank)
OD Turning Tools
4 – 20 mm OD Turning Tool Holders Available
ID Boring Tools
4 – 25 mm ID Bores Available for Tool Bushings
SPECIFICATIONS
Coolant System
80 Gallon Tank, 4 Coolant Pumps with Flow Control
Electrical Requirement
110 amps, 42 kVA, 220 vac ±5%, 3 Phase
Air Requirements
85 PSI, 20 cfm, for Parts Catcher, Ejector, Oil Mist Unit
Machine Weight
12,345 lbs (5,600 kgs)
Machine Dimentions
110”* x 85” x 82” (W x D x H) (* + 38” for Chip Conveyor)
