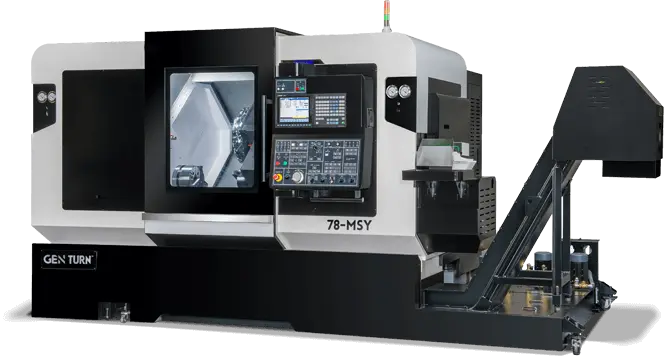

+ 78 mm 3” Bar Capacity
+ Twin 4,000 RPM Opposed Spindles
+ 16-Driven Tool Positions each station can mount multiple tools
+ “Y” Axis with ±1.968” Travel
+ Full “C” Axis on Main and Sub-Spindle
+ Complete Front & Back Work
CAPACITY
Turning Diameter Maximum / Standard
Ø12.2” (310 mm) / Ø8.2” (210 mm)
Center Distance
41.7” (1,061 mm) Between Spindle Centers
Turning Length
24.8” (630 mm) Maximum
MAIN SPINDLE
Spindle Nose / Bearing Diameter
A2-6 (Bearing Diameter 4.72” / Ø120 mm)
Spindle Bar Capacity
Ø3.070” (78 mm Drawtube ID / 88 mm Spindle Bore = 3.465”)
Chuck Size Included
Ø10” (with 78 mm Bore)
Spindle Center Height
40” (1,000 mm)
Maximum Spindle Speed
60 – 4,000 RPM (Integral Refrigerated Spindle)
Main Spindle Motor Power 15 / 22 kw
30 HP (30 min duty rating) / 20 HP (constant duty rating)
SUB-SPINDLE
Spindle Nose
A2-6
Spindle Bar Capacity
Ø2.559” (65 mm drawtube ID / 86 mm 3.386” spindle bore)
Chuck Size Included
Ø8” (with 65 mm bore) (Ø10” optional)
Maximum Spindle Speed
60 – 4,000 RPM (Integral Spindle)
Main Spindle Motor Power 11 / 15 kw
15 HP (30 min duty rating) / 10 HP (constant duty rating)
LIVE TOOL TURRET
Number of Turret Stations
16 (Any combination of 16 ID, OD or Live tool stations)
Index Time (Adjacent Tool / 180° index)
0.2 sec / 1.2 sec High-Speed Servo Indexing
Live Power Tool / RPM 3.7 / 5.5 kw
7.5 HP / 6,000 RPM, 14.75 ft. lbs torque (20 Nm)
Tool Size / Collet Size
1” (25 mm) (for square tool & 32 mm round tools) / ER-32 collets
Tool Holder Type & Size
BMT-65 Base Mount Tooling
B & C-AXIS
B-Axis Rapid Traverse Rate
1,573″ per min (40 m per min)
B-Axis Travel
29.31” (744 mm)
C-Axis Spindle Radial Resolution / Speed
360,000 Radial Positions with Full Contouring Capability / 600 RPM
AXIS SPECIFICATIONS
Axis Travel – X / Y / Z Axis
X = 9.05 / Y = ±1.968” / Z = 23.7” (230 mm) / (±50 mm) / (700 mm)
Rapid Travers Rate – X / Y / Z Axis
630 / 236 / 1,574 IPM (16 / 6 / 40 m / min)
Axis Motor Power
3 HP in X, Y, Z axis
Axis Continuous Thrust Rating
X = 2,142, Y = 2,924, Z = 1,425 pounds of Thrust Force
Minimum Programmable Input
0.0001” (0.001 mm = 40 millionths of an inch)
FLUID CAPACITY
Hydraulic System
8 gallons (30 Liters) with 5 HP (3.5 kw) Pump Motor
Dual Coolant Pumps
2x 1.7 HP Pumps for Tooling / 2 Pumps for Chip Flushing
Coolant Tank
74 gallon (280 Liters) coolant tank
SPECIFICATIONS
Machine Weight
17,650 lbs (8,000 kgs) – Shipping Weight 18,680 lbs (8472 kgs)
Electrical Requirement
56 kVA, 220 vac ±5%, 3 phase, 60 Hz, 130 amps
Air Requirement
85 PSI @ 8 -cfm for Parts Catcher, Ejector, Oil Mist Lubricator
Machine Dimensions
Length 145”* / Depth 82”/ Height 82” (*+44” for Chip Conveyor)
