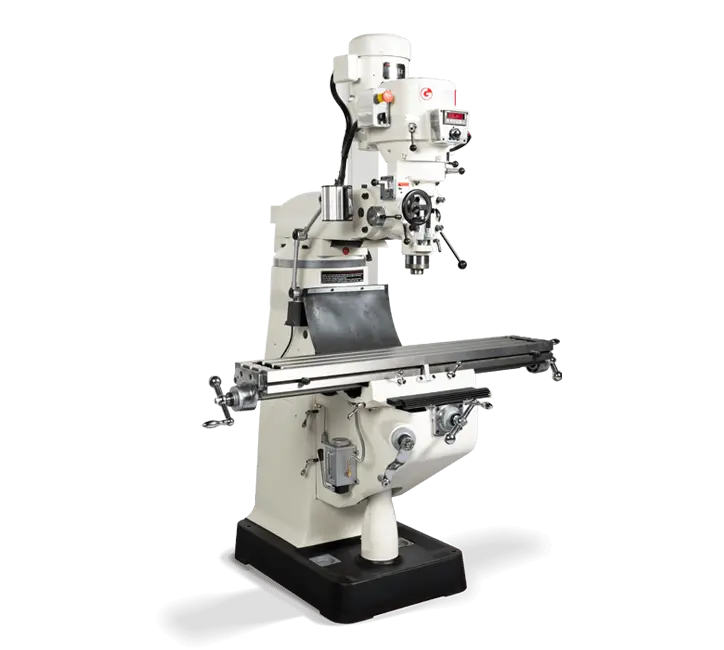

+ 3 Horsepower Variable Speed Head
+ Class-7 Super Precision Spindle Bearings
+ Hard-Chrome Plated and Mirror Ground Quill
+ Hard-Chrome Plated X & Y Axis Ways
+ 9” x 42” Table Dimensions
+ Coolant Proof Halogen Lamp Standard
TABLE
Table Size (W x L)
9” x 42” (230 x 1,067 mm)
T-slot Width / Quantity
5/8” / 3 on 2.5” centers
Table Load Capacity
400 lbs (181 kg)
Table Load Capacity (Evenly Distributed)
850 lbs (385 kg)
Table Surface to Floor Dimension
32″ – 48” (820 – 1,226 mm)
Table Travel – Longitudinal – X Axis
30” (762 mm)
Table Travel with Power Feed
24.8” (630 mm)
Cross Travel – Y Axis
12” (305 mm)
Vertical Knee Travel – Z Axis
16” (406 mm)
Overarm (ram) Travel
12” (305 mm)
Overarm Swivel
360°
Spindle Nose-to-Table Surface
0” – 18.5” (0 – 469 mm)
Spindle Centerline to Column Face
6.75” – 18.75” (171 – 476 mm)
Leadscrews with ground pitch surface (X & Y)
0.200” per rev.
Ways – X, Y & Z Axes – Hard Chrome Plated
Hardened & Ground Dovetail Ways
SPINDLE HEAD (VARI-SPEED)
Spindle Motor
3 HP / 3 Phase 220 volts (440 Optional)
Spindle Taper (hardened & ground)
R-8
Spindle Runout
0.00008” maximum runout (0.002 mm)
Spindle Bearings ABEC-7 matched set
Class-7 Bearings
Variable Speed Spindle
60 – 4,500 RPM
Head Tilt (Left-to-Right)
90° – 0 – 90°
Head Tilt (Front-to-Back / Up-Down)
+45° – 0 – -38°
Head Swivel on Turret
360°
QUILL
Quill Diameter
3-3/8” (85.725 mm)
Quill Travel – Manual & Power Feed
5” (127 mm)
Quill feeds – With Trip Release – Inch
0.0015” / 0.003” / 0.006”
Quill feeds – With Trip Release – Metric
0.04 mm / 0.08 mm / 0.16 mm
DIMENSIONS & WEIGHT
Machine Weight
2,222 lbs. (1,010 kgs)
Electrical Requirements – 220 volts
3 Ph / 60 Hz / 9.5 amps
