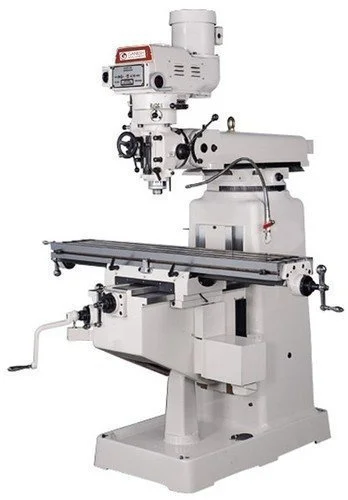

+ Class-7 Precision Spindle Bearings
+ 3 Horsepower Variable Speed Spindle
+ Square Box Slideways on Y & Z Axes
+ Hard-Chrome Plated, Ground & Lapped Quill
+ R-8 Taper Spindle
+ Coolant Proof Halogen Lamp Standard
TABLE
Table Size (W x L)
10” x 54” (254 x 1,372 mm)
T-slot Width / Quantity
5/8” (15.9 mm wide) 3 on 2.5” centers
Table Load Capacity
440 lbs (200 kg)
Table Load Capacity (Evenly Distributed)
950 lbs (430 kg)
Table Height – Surface to floor adjustment
37.4” – 52.8” (950 – 1,340 mm)
MACHINE TRAVELS & CAPACITY
Table Travel – X Axis (Optional Power Feed)
35” / 30.3” (889 mm) / (770 mm)
Cross Travel – Y Axis
17.5” (444.5 mm)
Vertical Knee Travel – Z Axis
15.05” (383.27 mm)
Ram Travel (Overarm) / Swivel
18.5” (470 mm) / 360°
Spindle Nose-to-Table Surface Travel
5.3” – 20.7” (135 – 525 mm)
Z2 – Quill Travel – Manual & Power Feed
5” (127 mm)
Quill Feeds – With Trip Release – Inch
0.0015″ / 0.003″ / 0.006″
Quill Feeds – With Trip Release – Metric
0.04 mm / 0.08 mm / 0.16 mm
Quill Diameter
3 – 3/8″ (85.725 mm)
Leadscrew ground pitch (X & Y)
0.2″ per rev. (ballscrews optional)
Scale ring resolution in inches
0.001″ (5 mm) (with adjustable zero position)
Ways – Hardened & Ground
Dovetail Ways in X axis / Square Box Ways in Y & Z axes
SPINDLE HEAD-TWIN SWIVEL (FORWARD-BACK & LEFT RIGHT)
Spindle Motor
3 HP / 3 Phase 220 volts (440 Optional)
Spindle Taper (hardened & ground)
R-8
Spindle Runout
0.0002” maximum runout (0.005 mm)
Spindle Bearings ABEC-7 matched set
ABEC-7 matched set Class-7 bearings
Variable Speed Drive – Dual Range
60 – 500 RPM (low-range) / 500 – 4,500 RPM (high-range)
Head Tilt (Left-to-Right)
90° – 0 – 90°
Head Tilt (Front-to-Back / Up-Down)
+45° – 0 – -38°
Head Swivel on Turret
360°
DIMENSIONS & WEIGHT
Power Requirements 3-Phase Power
220 vac / 15 amps (440 vac optional)
Machine Weight
2,750 lbs (1,250 kgs)
Machine Dimensions L x W x H
65″ x 66″ x 87″
ALSO AVAILABLE WITH CNC CONTROL!
