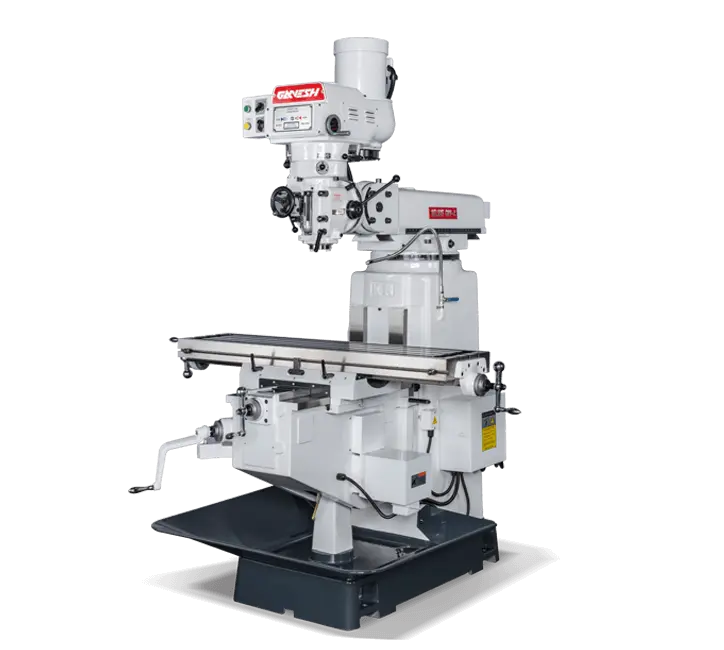

GANESH GMV-4 12” X 54” HEAVY DUTY 40-TAPER MILLING MACHINE

TABLE
Table Size (W x L)
12″ x 54″ (305 x 1,372 mm)

T-slot Width (3 Ground T-Slots)
5/8″ with ground reference edges (15.9 mm wide)

Table Capacity
1,200 lbs

MACHINE TRAVELS & CAPACITY
Table Travel – X Axis (With Power Feed)
36″ / 33.8″ (914 / 860 mm) / 32″ (812 mm)

Cross Travel – Y Axis
16″ (400 mm)

Vertical Knee Travel – Z Axis
16″ (406 mm)

Ram Travel (Overarm) / Swivel
17.7″ (450 mm)

Spindle Nose-to-Table Surface Travel
2″ – 18″ (50 – 457 mm)

Quill Travel – Manual & Power Feed
5″ (127 mm)

Quill Feeds – With Trip Release – Inch
0.0015″ / 0.003″ / 0.006″

Quill Feeds – With Trip Release – Metric
0.04 mm / 0.08 mm / 0.16 mm

Quill Diameter
4.13″ (105 mm)
Leadscrew ground pitch (X & Y)
0.2″ per rev. (5 mm)

SLIDE WAYS
Hardened & Ground Meehanite Cast Iron

Longitudinal Table –X Axis
Hardened & Ground Dovetail Ways

Cross Slide to Knee –Y Axis
Hardened & Ground Square Box Ways

Knee to Column – Z Axis
Hardened & Ground Square Box Ways

SPINDLE HEAD
Head Tilt (Left-to-Right)
90° – 0 – 90°

Head Tilt (Front-to-Back / Up-Down)
45° – 0 – 45°

Head Swivel
360°

Spindle Motor
5 HP / 3 Phase / 220 vac

Spindle Taper
NT #40 NMTB N.S. Spindle Taper

Spindle Runout
0.0002″ maximum runout (0.005 mm)

Spindle Bearings
ABEC-7 matched set of Class-7 bearings

Variable Speed Drive – Dual Range
80 – 520 RPM (low-range) / 520 – 4,000 RPM (high-range)

NOTE: 5,000 RPM Electronic Variable-Speed Spindle
available with optional AC Inverter Spindle Head

Power Requirements 3-Phase Power
220 vac @ 22 amps

DIMENSIONS & WEIGHT
Machine Weight
3,520 lbs (1,600 kg)

Coolant Capacity
11 Gallons (41 liters)
