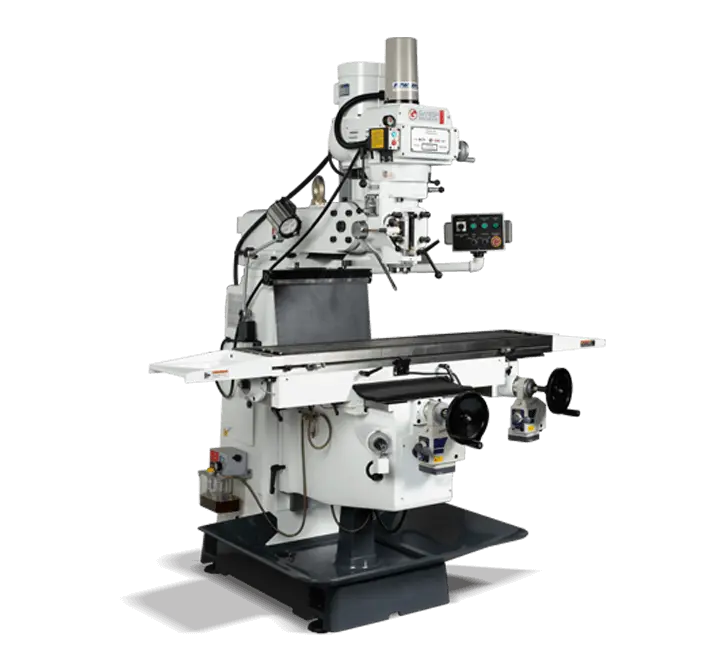

+ 5 HP spindle motor
+ #40 taper heavy duty spindle
+ Hardened and ground square boxways in “Y” and “Z”
+ Hardened and ground table and T-slots
+ Hardened, ground and chrome- plated quill
+ ABEC class-7 precision spindle bearings
TABLE
Table Size (W x L)
12″ x 58″ (305 x 1473 mm)
T-slot Width (3 Hardened & Ground T-Slots)
5/8″ with ground reference edges (15.9 mm wide)
Table Capacity
1,500 lbs
MACHINE TRAVELS & CAPACITY
Table Travel – X Axis (With or without Power Feed)
40.5″ (1,028 mm)
Cross Travel – Y Axis
15.75″ (400 mm)
Knee Travel – Z Axis
16″ (406 mm)
Ram Travel (Overarm) / Swivel
17.7″ (450 mm)
Spindle Nose-to-Table Surface Travel
2″ – 18″ (50 – 457 mm)
Quill Travel – Manual & Power Feed
5″ (127 mm)
Quill Feeds – With Trip Release – Inch
0.0015″ / 0.003″ / 0.006″
Quill Feeds – With Trip Release – Metric
0.04 mm / 0.08 mm / 0.16 mm
Quill Diameter
4.13″ (105 mm)
Leadscrew ground pitch (X & Y)
0.2″ per rev. (5mm)
SLIDE WAYS
Hardened & Ground Meehanite Cast Iron
Longitudinal Table –X Axis
Hardened & Ground Doevetail Ways
Cross Slide to Knee –Y Axis
Hardened & Ground Square Box Ways
Knee to Column – Z Axis
Hardened & Ground Square Box Ways
SPINDLE HEAD
Head Tilt (Left-to-Right)
90° – 0 – 90°
Head Tilt (Front-to-Back / Up-Down)
45° – 0 – 45°
Head Swivel
360°
Spindle Motor
5 HP / 3 Phase / 220 vac
Spindle Taper
NT #40-Taper
Spindle Runout
0.0002″ maximum runout (0.005 mm)
Spindle Bearings
ABEC-7 matched set of Class-7 bearings
Variable Speed Drive – Dual Range
80 – 520 RPM (low-range) / 600 – 4,000 RPM (high-range)
NOTE: 5,000 RPM Spindle available with optional
AC Inverter Spindle Head
Power Requirements 3-Phase Power
220 vac @ 26-amps
DIMENSIONS & WEIGHT
Machine Weight
3,740 lbs (1700 kg)
Coolant Capacity
13.5 Gallons (51 liters)
