+ Extremely Accurate angular contact ABEC class-7 (P4) ball bearings for
extreme spindle accuracy
+ 5C Collet Spindle with Spindle runout less than 80 millionths
+ 3 Horsepower Electronic Variable-Speed Inverter Motor
+ 130 - 4000 RPM Infinitely Variable Spindle Speeds
+ 11” Swing x 18” Between Centers
+ Power Feeds in Both Cross and Longitudinal Axis
WORK HOLDING CAPACITY
With Round 5C Collets
1-1/16″ (27 mm)
With Hex 5C Collets
7/8″ (22 mm)
With Square 5C Collets
3/4″ (19 mm)
With Expanding Collets
3″ (76 mm)
With Step Chucks
1-1/16″ – 6″ (27 – 152.4 mm)
With 3 & 4 Jaw Chucks
6″ (152 mm)
MACHINE CAPACITY
Swing over bed
11″ (280 mm)
Swing over carriage
9″ (228.6 mm)
Swing over cross slide
6″ (152.44 mm)
Distance between centers
18″ (457 mm)
Tailstock quill
MT#2
Main Motor
3 HP / 220 vac 3 phase 20 amps, or single phase 35-amp service (peak)
Coolant Pump
1/8 HP / 220 vac 3 phase only (with coolant nozzle & flow control valve)
MACHINE TRAVEL & SPECIFICATIONS
Cross Slide Travel
6″ (152 mm)
Compound Slide Travel
3″ (76 mm)
Quick Action Compound Slide Motion
0.1″ (2.5 mm) (eg. For thread pull out)
Tailstock Quill Travel
3-3/4″ (95 mm) features inch & metric quill graduations
Inch Threads (36)
11 – 108 TPI Threading gearbox selectable w/o change gears
Metric Threads (36)
0.275 – 2.7mm Threading gearbox selectable w/o change gears
Carriage Slide Powerfeed Range
3/16″ – 4″ per minute (8 – 178 mm)
Cross Slide Powerfeed Range
5⁄16” – 7″ per minute (5 – 102 mm)
Net Weight
2,420 lbs (1,098 kg)
Machine Shipping Dimensions L x D x H
74″ x 30″ x 66″ (1,880 mm x 762 mm x 1,676 mm)

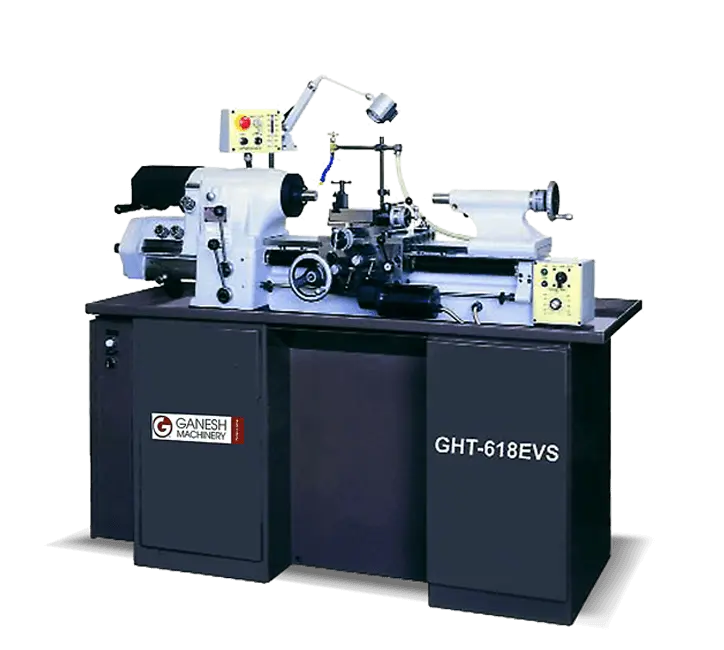

STANDARD ACCESSORIES INCLUDED WITH EACH GHT-618 EVS -
A $2,000 VALUE
5C Collet Quick-Action Production-Style Collet Closer
Coolant and Chip shield
Tool Box & Tool Kit & one adjustable height tool holder
Test bar & touch up paint & 64-collet storage wheel
Operation Manual & Parts List
Leveling Pads & Bolts
Halogen Work Light
Machine Options
Taper Turning Attachment Installed (Factory Order) $2,995.00
Steady Rest $995.00
Follow Rest $795.00
Factory machine installation: “Peace-of-Mind Factory Installation” – includes expenses $2,995.00
2-Axis Newall Premium DRO - installed $3,295.00
Micrometer Carriage Stop with Bracket $990.00
Work Holding Options
Live Center, MT-2 $660.00
Precision 5C 16-piece Collet set, 1/8” – 1 – 1/16” x 16ths $499.00
6” Precision ZERO-SET® 3-jaw scroll chuck w/top reversible jaws & back plate $1,795.00
6” Precision ZERO-SET® 6-jaw scroll chuck w/top reversible jaws & back plate $1,995.00
Drill Chuck and Arbor $495.00
Tooling Options
AXA Quick-Change Toolpost & 4-toolholders installed $995.00
Note: Specifications and pricing are subject to change without notice
A large compliment of spare parts is in stock at our US facility to ensure your continued operation.
