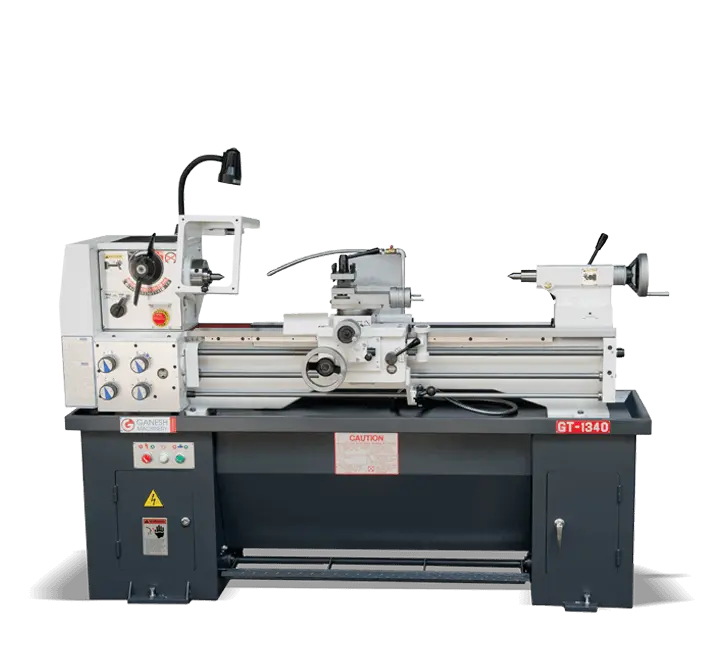

GANESH GTW-13 13” X 40” TOOLROOM ENGINE LATHE

CAPACITY & DIMENSIONS
Swing over Bed
13″

Center Height
6-1/2″

Swing over Cross Slide
7-25/32″

Swing thru Gap
18-3/4″

Length of Gap in front of face plate, D1-4
4-1/2″

Distance between Centers
40″

Bed casting width, length, depth
7-3/8″ / 65-1/8″ / 11-13/32″

SPINDLE
Spindle Motor Horsepower
3 HP

Spindle Speeds – 8 speed geared head rpm
70 – 2,000

Spindle Bore
1-1/2″

Spindle Nose
D1-4

Spindle taper in Spindle Nose
MT-5
Morse Taper-5

CARRIAGE
Cross Slide Travel
6-5/16″ (160 mm)

Cross Slide Width
4-5/8″ (118 mm)

Cross Slide Lead Screw Pitch
8 TPI

Cross Slide Resolution per division
0.25″/rev. (on diameters)

Carriage Lead Screw Diameter / Pitch
7/8″ / 8 TPI 22 mm / 3 mm pitch

Feed Rod Dimension
3/4″ hexagon 19 mm hexagon

COMPOUND
Compound Top Slide Travel
2-11/16″ (68 mm)

Compound Top Slide Width
3″ (76 mm)

Cutting Tool Height Maximum
5/8″ x 5/8″ 16 mm x 16 mm

TAILSTOCK
Quill Diameter
1-21/32″ (42 mm)

Quill Stroke
4-1/2″ (114 mm)

Quill Taper
MT-3
Morse Taper #3

Quill Tang Drive and Drift-Slot for Tailstock
included

Tailstock Body set-over adjustment
±0.04″ ±1 mm

THREAD CUTTING
Thread Cutting Range – 31 inch pitches
4 – 56 TPI

Thread Cutting Range – 26 metric pitches
0.4 – 7 mm

Thread Cutting Range – 32 diametral pitches
8 – 120 D.P. (optional)

Thread Cutting Range – 21 module pitches
0.2 – 3 M.P. (optional)

FEEDS
Feeds – Longitudinal – 32 Feeds
0.002″ – 0.548″ / rev.

Feeds – Cross – 32 Feeds
0.0007″ – 0.0187″ / rev.

WEIGHT & DIMENSIONS
Machine Dimensions – L x W
76 3/8″ x 29 3/4″ (1,940 x 755 mm)

Machine Height
48 3/4″ (1,238 mm)

Overall Machine Weight
1,345 lbs 610 kgs

Electrical Power Requirements
220 volts / 3 Phase @ 8.50 amps
