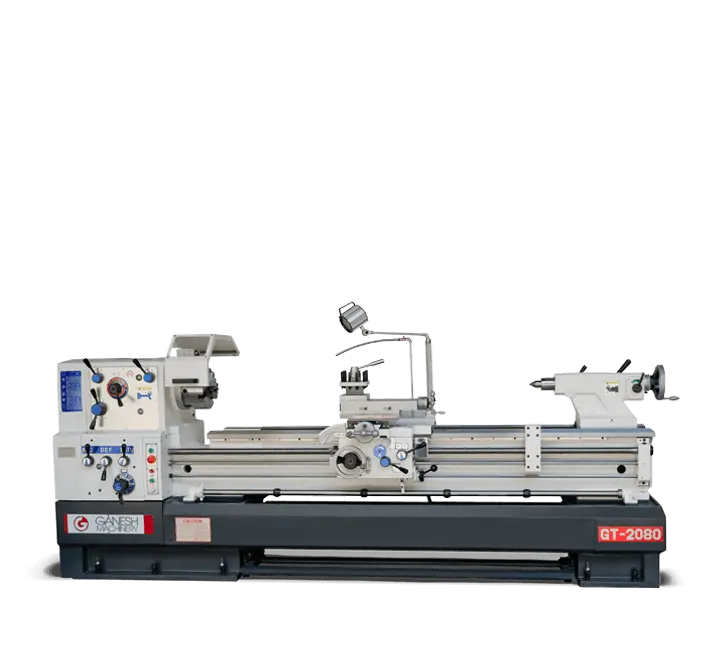

+ Heavy duty 10-HP D1-8 spindle with 20” Swing
+ Hardened and ground Turcite® coated bed ways
+ Hardened and ground gear
+ 12-speed geared head spindle
+ Safety foot brake
+ Safety chuck guard
CAPACITY & DIMENSIONS
Swing over Bed
20″ (510 mm)
Center Height
10″ (255 mm)
Swing over Cross Slide
13″ (330 mm)
Swing thru Gap
26 3/8″ (680 mm)
Length of Gap in front of D1-8 face plate
7 1/16″ (180 mm)
Bed Casting – width / height
16 1/8″ / 12 7/32″ (400 mm / 310 mm)
SPINDLE
Spindle Motor Horsepower
10 HP 3 Phase
Spindle Speeds – 12 speeds 20 – 1,550 RPM (high to low)
Spindle Bore
3 1/8″ (80 mm)
Spindle Nose
D1-8 Cam lock
Spindle taper in Spindle Nose
MT-7
Morse Taper #7
Spindle taper reduction sleeve provided
MT-7 to MT-5
CARRIAGE
Cross Slide Travel
12 1/2″ (320 mm)
Cross Slide Width
7 3/32″ (180 mm)
Cross Slide Lead Screw Pitch
.200″ / rev
Cross Slide Resolution per division
0.001″ (on diameters)
Carriage Lead Screw Diameter
1 1/2″ (38 mm)
Carriage Lead Screw Pitch
4 TPI (6 mm pitch)
Feed Rod Dimensions
7/8″ hexagon 23 mm hexagon
COMPOUND
Compound Top Side Travel
10″ (255 mm)
Compound Top Slide Width
4 11/32″ (110 mm)
Cutting Tool Height Maximum
1.0″ x 1.0″ (25 mm x 25 mm)
TAILSTOCK (2 SPEED QUILL ADVANCE)
Quill Diameter
2-15/16″ (255 mm)
Quill Stroke
6 5/16″ (160 mm)
Quill Taper
MT-5
Morse Taper #5
Quill Tang Drive and Drift-Slot for Tailstock
included
Tailstock Body set-over adjustment
±0.04″ ±1 mm
THREAD CUTTING
Leadscrew Diameter / Pitch
1 1/2″ / 4 TPI
38 mm / 6 mm pitch
Thread Cutting Range – 60″ pitches
2 – 112 TPI
Thread Cutting Range – 60 metric pitches
0.2 – 14 mm
Thread Cutting Range – 50 diametral pitches
4 – 112 M.P.
Thread Cutting Range – 50 module pitches
0.2 – 7 M.P
FEEDS
Feeds – Longitudinal – 50 Feeds
0.0014″ – 0.0387”/rev. (0.037 – 1.04 mm / rev)
Feeds – Cross – 50 Feeds
0.0007″ – 0.01935″/rev. (0.0185 – 0.52 mm/ rev)
Feed stop shaft
4 adjustable automatic feed stops to disengage the longitudinal feed
Coolant Pump
1/8 HP
Machine Power Requirements (440 vac optional)
220 vac / 3 Phase / 30 amps
