+ Full Manual & CNC Capability
+ Ideal for R&D Toolroom shops
+ Easy to use CNC Control (FAGOR or ACCU-RITE)
+ Precision Ball Screws
+ Rugged Meehanite castings with high density cast iron
+ Hardened & Ground Table ways
TABLE
Table Size (W x L)
10″ X 54″ (254 x 1,372 mm)
T-Slot Width (3 T-Slots)
5/8″ T-Slots with ground reference edges (15.9 mm)
Table Load Capacity (Evenly Distributed)
950 lbs (430 kgs)
MACHINE TRAVELS & CAPACITY
Travel may be reduced by CNC limit switches
Table Travel – X Axis (under CNC control)
34.5″ (875 mm)
Cross Travel – Saddle / Y Axis
16.3″ (415 mm)
Knee Travel –Z Axis
15.75″ (400 mm)
Spindle Nose-to-Table Surface Travel
2″ – 18″ (50 – 457 mm)
Quill Travel – CNC Z Axis
5″ (127 mm) (manual & Powerfeed travel w/o 3rd)
Quill Feeds – With Trip Release – Inch
0.0015″ / 0.003″ / 0.006″
Quill Feeds – With Trip Release – Metric
0.04 mm / 0.08 mm / 0.16 mm
Quill Diameter
3 –3/8″ (85.725 mm)
Ballscrew ground pitch (X & Y)
0.2″ per rev.
Adjustable scale ring resolution
0.001″ (5 mm)
Ways – Hardened & Ground
Dovetail Ways in X-Axis for precision
Square Box Ways in Y-Axis and Z-Axis for rigidity
SPINDLE HEAD
Spindle Motor
3 HP
Two-range 6--4500 RPM
Spindle Taper
R-8 (#30 taper & #40 taper optional)
Spindle Runout
0.0002″ maximum runout (0.005 mm)
Spindle Bearings
ABEC-7 matched set Class-7 bearings
Head Tilt (Left-to-Right)
90° – 0 – 90°
Head Tilt (Front-to-Back / Up-Down)
45° – 0 – 45°
Head Swivel
360°
DIMENSIONS & WEIGHT
Power Requirements 3-Phase
220 vac 21 amps
Machine Dimensions L x W x H
65″ x 66″ x 87″
Machine Weight
3,482 lbs (1,580 kgs)
Training & Terms of Sale
FREE Training – Expand Machinery offers a 3-day training program for all production CNC machines at our training center. The intense training program includes basic manual programming, machine setup, operation, and operator level maintenance for those with a working knowledge in the programming & setup of CNC machines. Training does not cover CAD/CAM systems or Manual Guide-i type of programming. On-site training are an available option, charged at the prevailing hourly rate.
Warranty – 1-year Fagor control & drive warranty.1 full year parts warranty on the machine. Labor will be provided by your local servicing distributor.
Parts– Spare parts are available at our facility in Chatsworth to support your continued machine operation.
F.O.B. Point – Machines ship F.O.B. from Chatsworth, CA 91311.
Payment Terms – 30% down payment with your Purchase Order secures the machine. 60% is due prior to machine shipment, and the 10% balance is due net-30 days after installation.
Or the machine can be financed with our approved lender. Leases with $1.00 buyout are available upon approved credit.
Purchase is governed by the Expand Machinery terms and conditions of sale.
UL & TÜV ELECTRICAL APPROVAL IS AN AVAILABLE OPTION
Prices and specifications subject to change without prior notice.

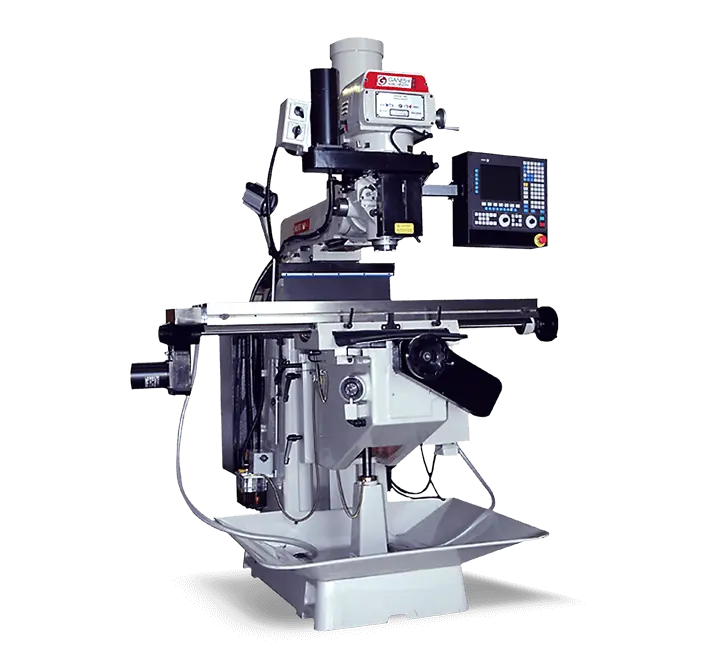

GMV-3 WITH FAGOR 8055MC CNC CONTROLLER – 4th AXIS CAPABLE
FIVE EASY WAYS TO PROGRAM THE MACHINE:
FULL MANUAL CAPABILITY
TEACH-IN-PLAYBACK MODE
CONVERSATIONAL CONTROL
FULL G-CODE CAPABILITY
CAD/CAM
Some features on the control may not be available on the machine.
Please ask your sales representative any specific questions.
The Fagor 8055 MC Control System is perhaps the most versatile CNC in existence due to its Dual Operating System. In one mode, it is a very powerful ISO G-code control System and, in the other mode, it features Icon conversational programming with highly interactive graphics, which make even complex tasks easy to program - regardless of the operators experience level.
No prior CNC programming knowledge is required to operate this control.
• Icon Conversational Programming – 26 High-Performance Canned Cycles
Rectangular Boss cycle, Round Boss cycle, Rectangular Pocket cycle, Circular Pocket cycles, Profile Pocket 2D & 3D cycles, Slot Milling, Profile Milling, Multiple Drilling cycles, Boring cycles, Reaming cycles, Arc bolt hole cycles, Random position cycles, Grid Pattern position cycles.
• 4-axis CNC + spindle all under full CNC control
• 4-axis simultaneous interpolation with full Linear, Circular and Helical Interpolation
• Fagor Intelligent Profile Editor (mini CAD/CAM)
• Tool Radius, Tool Length, Tool Wear compensation, 255-sets
• Simulation mode, dry run mode, and Solid 3D Graphics Display with zoom feature
• 10.4” High Resolution LCD color monitor
• Jog Mode & MDI Mode
• Tool offset and Work Coordinate Zero offset tables
• G-code Programming and Editing (on-line with interactive editor), plus M-codes
• WIN DNC offline software program
• Ballscrew pitch & backlash compensation
• Tele-diagnosis: Remote Instant Service capability through modem. (optional)
• Front-mounted USB port for program transfer (standard), Ethernet TCP/IP (optional)
Standard Equipment:
Halogen Work Light
Way Covers
MACHINE OPTIONS:
4” Riser Installed $750.00
6” Riser installed $995.00
Air Power Drawbar Installed $995.00
Upgrade to DVS (Digital Variable Speed) $1,295.00
Factory machine installation:
“Peace-of-Mind Factory Installation” – includes expenses $2,995.00
Factory on-site 2-day machine
Operation and program training – includes expenses $3,995.00
Upgrade Acu-rite Mill Power G2 (Net) $9,990.00
Upgrade to Fagor 8058 CNC Control (Net) $1,995.00
