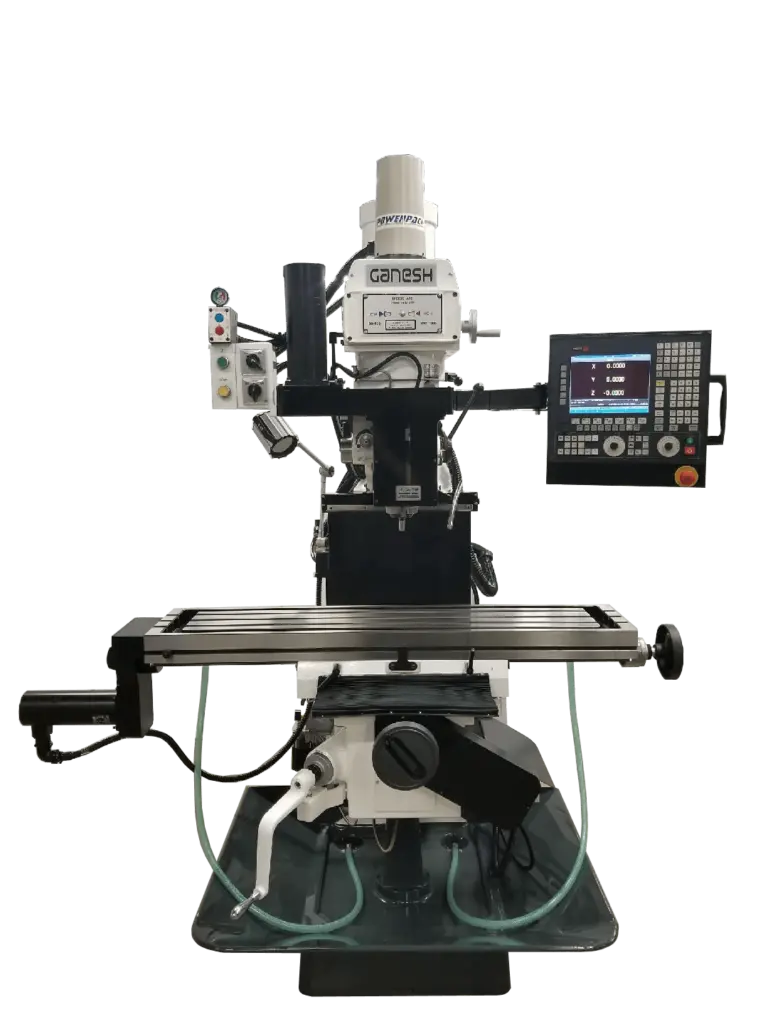

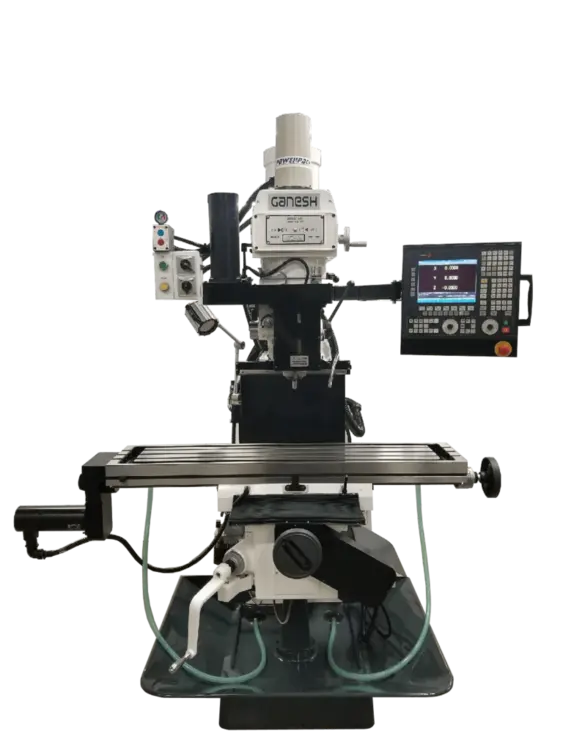

GANESH GMV4 CNC 12” X 54” 40-TAPER HEAVY DUTY CNC PLUS MILL

TABLE
Table Size (W x L)
12″ x 54″ (254 x 1,372 mm)

Table Travel with CNC Control
33.5″ (850 mm)

Travel Capacity
1,200 lbs

T-Slot Width (3 T-Slots)
5/8″ T-Slots with ground reference edges (15.9 mm wide)

MACHINE TRAVELS & CAPACITY
Table Travel – X Axis
34.75″

Cross Travel – Y Axis
14″

Knee Travel
16″ (406 mm)

Ram Travel
17.7″ (450 mm)

Spindle Nose-to-Table Surface Travel
2″ – 18″ (50 – 457 mm)

Ballscrew ground pitch (X & Y)
0.2″ per rev.

Adjustable scale ring resolution
0.001″ (0.0254 mm)

SLIDE WAYS
Hardened & Grounded Meehanite® Processed Cast Iron

Longitudinal Table – Z Axis
Hardened & Ground Dovetail Ways

Cross Slide to Knee – Y Axis
Hardened & Ground Square Box Ways

Knee to Column
Hardened & Ground Square Box Ways

SPINDLE HEAD
Head Tilt (Left-to-Right)
90° – 0 – 90°

Head Tilt (Front-to-Back / Up-Down)
45° – 0 – 45°

Head Swivel
360°

Spindle Motor
5 HP / 3 Phase 208 – 240 vac

Spindle Taper
NMTB #40 N.S. Taper

Spindle Runout
0.0002″ maximum runout (0.005 mm)

Spindle Bearings
Fafnir ABEC-7 Matched set of Class-7 Bearings

Variable Speed Drive – Dual Range
80 – 520 RPM (low-range) / 600 – 4,000 RPM (high-range)

Note: 5,000 RPM Electronic Variable-Speed Spindle
available with the optional AC Inverter Spindle Head

QUILL
Quill Travel – CNC Z-Axis
5″ (127 mm) Manual & Power Feed w/o 3rd CNC Axis

Quill feeds (per rev.) with Trip Release – Inch
0.0015″ / 0.003″ / 0.006″

Quill feeds (per rev.) with Trip Release – Metric
0.04 mm / 0.08 mm / 0.16 mm

Quill Diameter
4.13″ (105 mm)

DIMENSIONS & WEIGHT
Power Requirements 3 Phase
208 – 220 vac ±5% @ 22 amps (440 vac optional) /
110 vac 20-am dedicated service required for CNC Control

Coolant Capacity
11 Gallons (41 Liters)

Machine Weight
1,600 kgs
