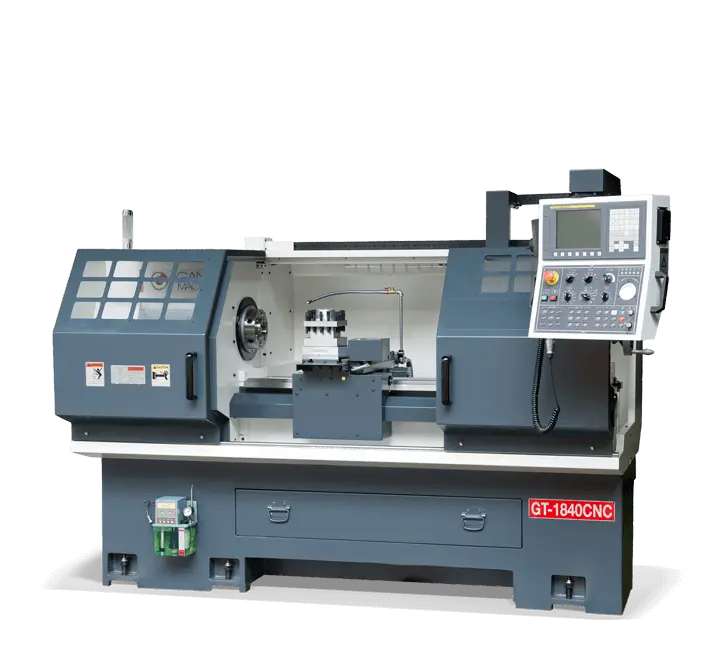

New - Build-To-Order GANESH GTW-1840 CNC | CNC Lathes

CAPACITY & DIMENSIONS
Swing over Bed
18″ (460 mm)

Swing over Cross Slide
9″ (230 mm)

Center Height
9″ (230 mm)

Center Distance
39.37″ (1,000 mm)

Bed Length
82.5″ (2,095 mm)

Bed Way Width
14 1/2″ (370 mm)

Bed Casting Height
13 3/8″ (340 mm)

SPINDLE
Spindle Motor Horsepower (7.5 kw – 11 kw Inverter Type)
15 HP Peak (10 HP 30min duty rating)

Spindle Speeds – 2 gear ranges L, H
43 – 2500 RPM infinitely variable, in 2 gear ranges

Spindle Speed per gear range
L = 43 – 850 H= 125 – 2500 RPM

Constant Torque Ranges
L = 43 – 270 H= 125 – 800 RPM

Constant Power Ranges
L = 270-850 H-800 – 2,500 RPM

Spindle Bore
2 3/8″ (2.385″) (60 mm)

Spindle Nose – Camlock
D1-6 Camlock (A2-6, 4,000 RPM optional)

Spindle ID Taper in Spindle Nose
MT-6 MT#6

CROSS SLIDE X AXIS
Rapid Traverse Feedrate
393 IPM (10 m/min)

X-Axis motor
FANUC Beta IS4 0.75 kw (4,000 RPM)

Cross Slide Travel
10.63″ (270 mm)

Cross Slide Dimensions – width x length
8.26″ x 27.5″ (210 x 700 mm)

Cross Slide Ballscrew diameter / pitch
1″ / 5 mm (25mm) Accuracy Grade C3

4-Way Programmable Toolpost – height / index speed
20 mm tool height / 4 second tool change time

Cross Slide Thrust
1,190 lbs (540 kg force)

CARRIAGE Z AXIS
Rapid Traverse Feedrate
472 IPM (12 m / min)

Z-Axis Motor
Fanuc Beta IS4 0.75 kw (4,000 RPM)
Z-Axis Travel
38.58″. (980 mm)

Cutting Tool Height Maximum
0.79″ (20 mm)

Carriage ballscrew diameter
1.25″. (32 mm)

Carriage ballscrew pitch
5 mm Accuracy Grade C3 (H-P Laser Tested)

Carriage Slide Thrust
1,190 lbs. (540 kg Force)

TAILSTOCK
Quill Diameter
2 15/16″ (75 mm)

Quill Stroke
6 5/16″ (160 mm)

Quill Taper
MT-5 Morse Taper #5

Quill Tang Drive and drift-slot for tailstock
included

Tailstock body set-over adjustment
±0.4″ (±1 mm)

SPECIFICATIONS
Coolant Pump Motor / Coolant Capacity
1/8 HP / 13.2 gal (50 liters)

Electrical Requirements
220 vac ±5% 60 Hz / 60 amp service

Machine Weight
5,072 lbs (2,300 kgs)

Shipping Weight
5,734 lbs (2,600 kgs)

Machine Dimensions ( L x W x H )
100″ x 55″ x 73″ (2,525 x 1,400 x 1,840 mm)

Shipping Dimensions ( L x W x H )
108″ x 73″ x 83″ (2,743 x 1,854 x 2,108 mm)
