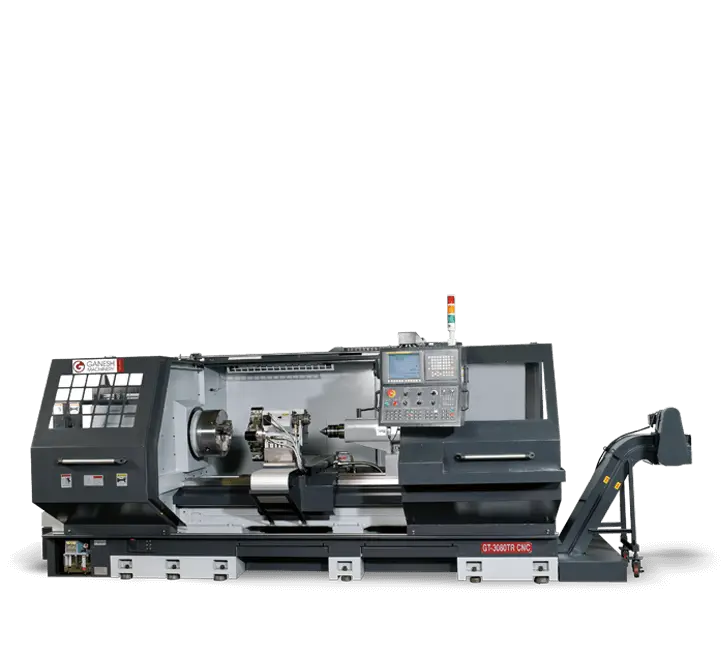

+ A2-11 Spindle w/ 6-5/8” Bore
+ 10 - 1000 RPM Standard
+ A2-15 Spindle w/ 10” Bore, 18 - 600 RPM Optional
+ 2-Gear Ranges for Increased Cutting Torque
+ 8-Station Tool Turret – Any combination of ID/OD tools
+ Dual-Turrets ( Front & Rear of cross slide ) Available
CAPACITY & DIMENSIONS
Swing over Bed
30″ (760 mm)
Turning Diameter (in front of cross slide w/8 station turret turning tool
22" (560 mm)
Swing over Cross-Slide (turning diameter over cross-slide)
19″ (480 mm)
Center Height
15″ (380 mm)
Bed width of ways
18″ (460 mm)
Bed Casing Height
15.75″ (400 mm)
SPINDLE
Spindle Motor Horsepower (Fanuc 15 Kw – 18 Kw)
30 HP (25 HP 30 min rated)
Spindle Speeds
10 – 1,000 RPM
Spindle Gear Ranges – 2 automatically selected gear ranges
L = 30 – 300 RPM H = 10 – 1000 RPMS
Spindle Bore (10″ bore optional)
6.69″ (170 mm)
Spindle Nose (front & rear) / bearing
A2-11 / Taper Roller Bearings
Spindle Torque for 6 5/8″ bore – low gear / high gear
1,180 / 346 ft lbs (1,600 / 470 Nm)
Big-Bore Spindle Option – Bore Size
10″ (255 mm) A2 – 15 spindle
Big Bore Spindle Speeds
18 – 600 RPM in 2 ranges
Big Bore Spindle Gear Ranges
Low 18 – 186 RPM High 60 – 600 RPM
Big Bore Spindle Torque for 10″ bore – low gear/high gear
1,475 / 442 ft lbs (2,000 / 600 Nm)
AXIS
Rapid Traverse Feedrate X & Z
394 IPM (10 m / min)
X-Axis Cross Slide Travel
19 5/8″ (500 mm)
Z-Axis Travel (listed with each bed length)
X-Axis Ballscrew Diameter / Servo Motor Power
1.25″ (32 mm) 2.0 HP (1.6 kw)
Z-Axis Ballscrew Diameter / Servo Motor Power
2″ (50 mm) 4.0 HP (2.9 kw)
X-Axis Thrust
2,020 lbs (920 kgf)
X-Axis Thrust
3,020 lbs (1,370 kgf)
Cross Slide Dimensions W x L
39″ x 10″ (1,000 mm x 258 mm)
Minimum input unit
0.0001″ (0.001 mm = 40 millionths)
TOOL TURRET
Hydraulic type / LS-200R
Tool stations – any combination of ID / OD tooling / Index time
8 stations
OD Tooling (additional ID & OD tool holders in stock)
1″ tools w/ 8 tool clamps provided
ID Tooling (40mm when specified for metric users)
4 ID (1.5″ bore) holders provided
TAILSTOCK
Air-Assisted Manual Positioning – Quill engraved with inch/metric quill graduations
Quill Diameter
4.92″ (125 mm)
Quill Stroke (manual quill advance, hydraulic optional)
7.87″ (200 mm)
Quill Taper
MT-6 Morse Taper #6
Tailstock body set-over adjustment
±0.4″ (±1 mm)
ELECTRICAL / HYDRAULIC / COOLANT
Power Requirements – FANUC 0i – TF control, motors & drives
30 kVA / 220 vac / ±5%
Hydraulic Motor Power
2 HP
Hydraulic Pressure
435 PSI / Mobil #32 oil
Coolant Pump
3/4 HP
Machines need stable 220 volts, 3 Phase – Please use appropriate transformers or voltage stabilizers
