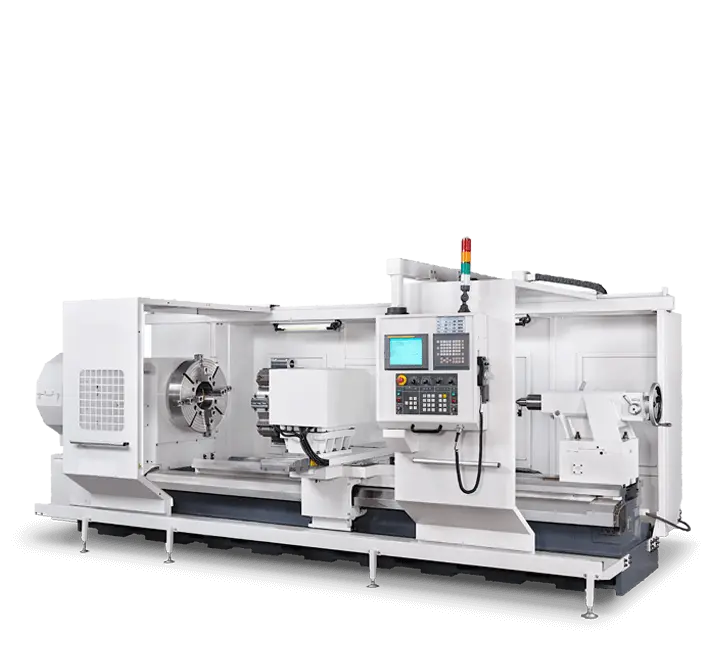

+ 30 HP Spindle Motor (40 HP optional)
+ 6 – 500 RPM Spindle Speeds
+ 4 - Automatically Selected Gear Ranges for High Torque
+ A2-11 Spindle with a 6” Bore (9”, 10”, 12” & 15” Spindle Bores Optional)
+ Rear Spindle Chuck Mount available to support long workpieces
+ Boring Bar Holder Available for back of Cross Slide
CAPACITY & DIMENSIONS
Swing over Bed
44″ (1,120 mm)
Swing over Cross Slide
27.95″ (710 mm)
Distance between centers
78″ – 236″ (2,000 – 6,000 mm)
Bed Width
32″ (810 mm)
SPINDLE
Spindle Motor Horsepower – up to 160″ bed lengths
30 HP (22 kw Fanuc) / (40 HP Optional)
Spindle Motor Horsepower – 200″ + bed lights
40 HP (30 kw)
Spindle Speeds
6 – 500 RPM (6-292 with A2 – 15 & A2 – 20 spindles)
Spindle speed gear ranges – automatically selected
4-gear ranges (infinetely variable speeds in each range)
Spindle Bore
6″ (152 mm) (Optional 9″, 10″ , 12″ & 15″ available)
Spindle Nose
A2-11 (Optional A2-15 / A2-20 spindle nose)
AXIS
Cross Slide Travel
23.62″ (600 mm) (varies with turret selected)
X-Axis Ballscrew / Servo Motor
40 mm Pitch 5 mm / 4 HP (3 kw) Servo motor
Z-Axis Ballscrew / Servo Motor
63 mm Pitch 10 mm / 5.5 HP (4 kw) Servo motor
X and Z Axis rapid feed rate
196″/min (5,000 mm / min)
X and Z Axis cutting feed rate
118″ / min (3,000 mm / min)
Minimum input unit
0.0001″ (0.001 mm = 40 millionth of an inch)
TOOL TURRET
Turret Tool Stations
8 Station tool turret with any mix of ID and OD tools
OD Tool Size
1.25″ x 1.25″ (32 x 32 mm)
ID Tool Holder Bore (4 ID Toolholders included)
1.97″ (50 mm) (63 mm Optional)
TAILSTOCK
Engraved with inch/metric quill graduations
Quill Diameter
7.87″ (200 mm)
Quill Stroke
11.81″ (300 mm) with 2 speed quill gearing
Quill Taper
MT-6 Morse Taper #6
Body Movement
Carried by saddle – manual lockdown
Optional Hydraulic Tailstock available
Carried by saddle – hydraulic quill & bed lockdown
SPECIFICATIONS
Cooling System
1.7 HP (1.275 kw) coolant pump
Electrical needs – Fanuc 0i-TF, Drives & Motors
220 vac / ±5% / 3 Phase / 60 Hz
Warranty – 1 Year Machine
2 Year FANUC control and drives
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers
