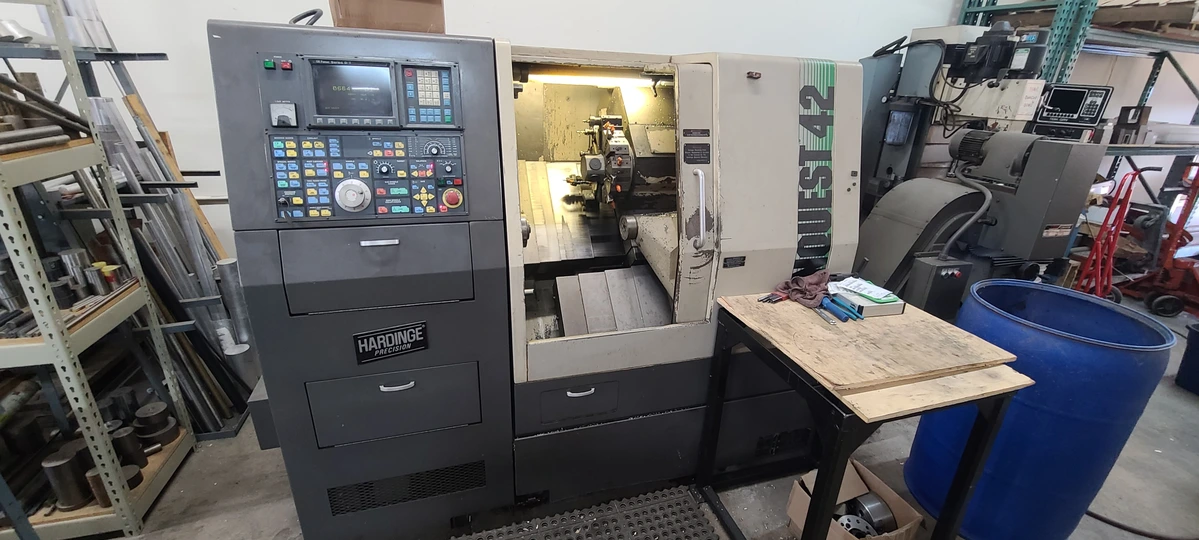

HARDINGE CONQUEST T42 CNC TURNING CENTER
Have one to sell?
ConditionUsed
1 available
HARDINGE CONQUEST T42 CNC TURNING CENTER
NEW IN 2002
Brand: Hardinge Precision
Model: Conquest 42
Year: 2002
Specifications:
Hole Thru Spindle: 1.875″
Swing Upper Way Covers: 19.5″
Swing Lower Way Covers: 14.5″
X Axis Traverse: 472 ipm
Z Axis Traverse: 630 ipm
Distance Spindle to Turret: 14″
X Axis Travel: 5.45″
Z Axis Travel: 13.65″
Max Turning Diameter: 9.1″
Distance Between Centers: 13.8″
Controller: Fanuc OT
Power: 230V / 3 Phase
Chip Conveyor
Foot Pedal
Hydraulic Bar Loader
Tool Holders
Available Live-tools
Sub-spindle (needs a part)
All relevant available manuals & Documents
HARDINGE CONQUEST T42 CNC TURNING CENTER
NEW IN 2002
Imperial
| Swing | 21.2" |
| Machining Length | 13.1" |
| # Axis | 3 |
| Chuck Size | 6" |
| Bar Capacity | 1.625" |
| Power | 10 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 9" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (Fanuc) |
| Dimensions | Approx: 8′ L x 5′ W x 6′ H |
| Weight | 10,000 lbs |
Brand: Hardinge Precision
Model: Conquest 42
Year: 2002
Specifications:
Hole Thru Spindle: 1.875″
Swing Upper Way Covers: 19.5″
Swing Lower Way Covers: 14.5″
X Axis Traverse: 472 ipm
Z Axis Traverse: 630 ipm
Distance Spindle to Turret: 14″
X Axis Travel: 5.45″
Z Axis Travel: 13.65″
Max Turning Diameter: 9.1″
Distance Between Centers: 13.8″
Controller: Fanuc OT
Power: 230V / 3 Phase
Chip Conveyor
Foot Pedal
Hydraulic Bar Loader
Tool Holders
Available Live-tools
Sub-spindle (needs a part)
All relevant available manuals & Documents
