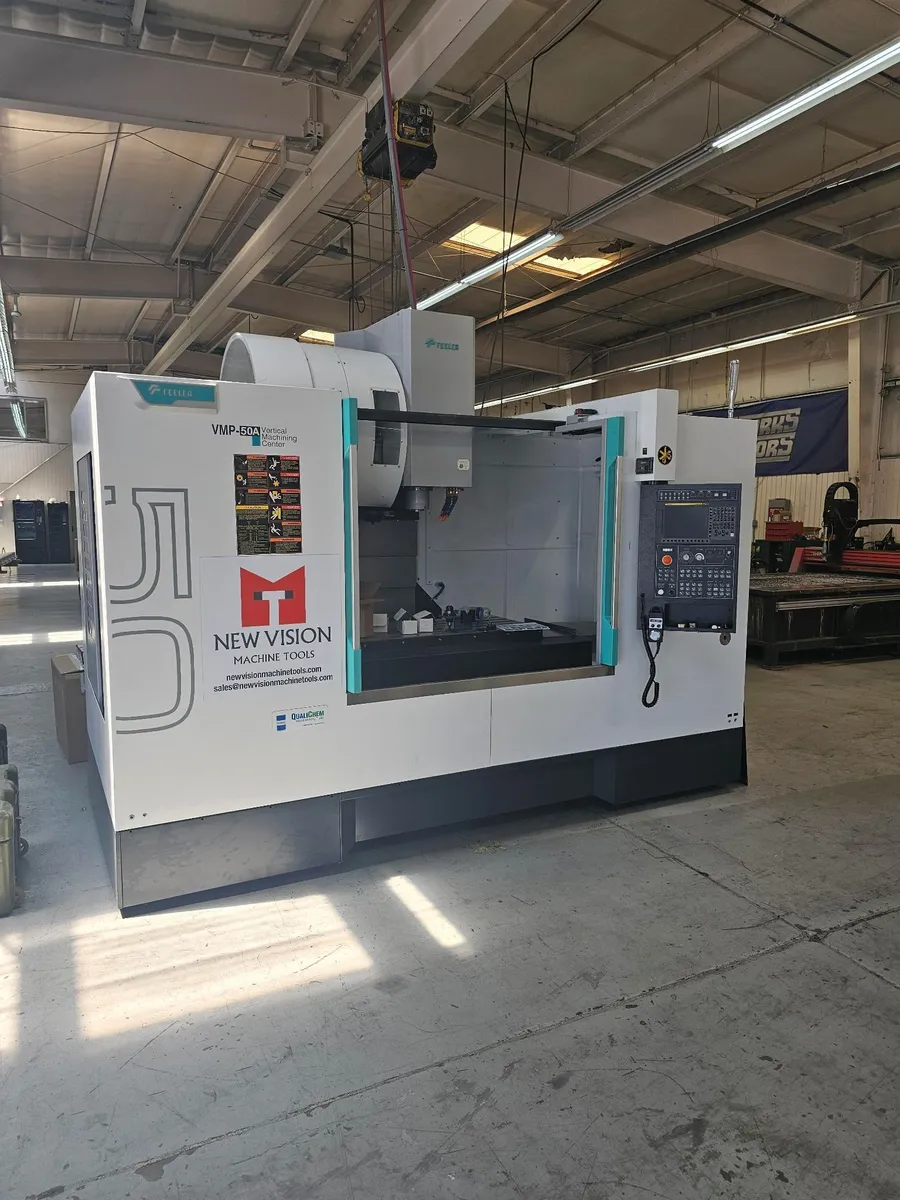

Used 2022 FEELER VMP-50A | Vertical Machining Centers

SPECIFICATIONS:

CNC CONTROLER
Fanuc 0i-MF

MACHINE TRAVELS
X axis travel 1,300mm (51.2”)]
Y axis travel 610 mm (24”)
Z axis travel 600 mm (23.6”)
Spindle nose to table surface 120~720 mm (4.7” ~28.3”)
Column surface to table center 660 mm (26”)

TABLE
Table size 1,420 x 600 mm (55.9” x 23.6”)
Loading capacity (lbs.) 1,500 kg (3,300 lbs.)
Dimensions of T-Slots 18H8 x p100 x 5ea

SPINDLE
Spindle speed 10,000 belt driven
Spindle taper CAT # 40 (Dual Contact)
Max. torque (S3, 30%) 118 Nm (87 lbs.-ft)

FEED RATE
Rapid traverse(X/Y) 36 m/min (1417 IPM)
Rapid traverse(Z) 24 m/min (945 IPM)
Cutting feed rate rpm (X/Y/Z) 20/20/20 m/min (787/787/787 IPM)

AUTO TOOL CHANGER
Magazine Capacity 30 Tools
Tool shank Dual Contact (CAT 40 Taper)
Maximum tool diameter [Adjacent empty] Ø80 mm (Ø 3.15”) / [Ø 150mm (5.9”)]
Maximum tool length 300 mm (11.81”)
Maximum tool weight 8 kg (17.6 lbs.)
Tool changing time (T-T) 1.7 sec

MOTORS
Spindle drive motor α15/10,000i 18.5/15 kw (25/20 HP)
Feed motor (X/Y/Z) 4 / 4 / 4 kw (5.4/ 5.4 / 5.4 hp)
Coolant pump motor 0.86 kW (1.2hp)
Lubricant pump motor 12 W (0.0160hp)

MACHINE SIZE
Floor space (L x W) 3,550 x 2,750 mm (140” x 108”)
Machine height 2,900 mm (114”)
Machine Weight 7,300 kg (16,060 lbs.)
Total power capacity 35 kVA
