Sold

2005 HAAS TL-1

CNC Lathes
Manufacturer:
HAAS
Model:
TL-1
Year:
2005
Stock #:
323192
Serial #:
69388

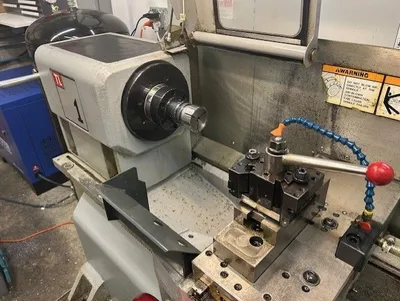

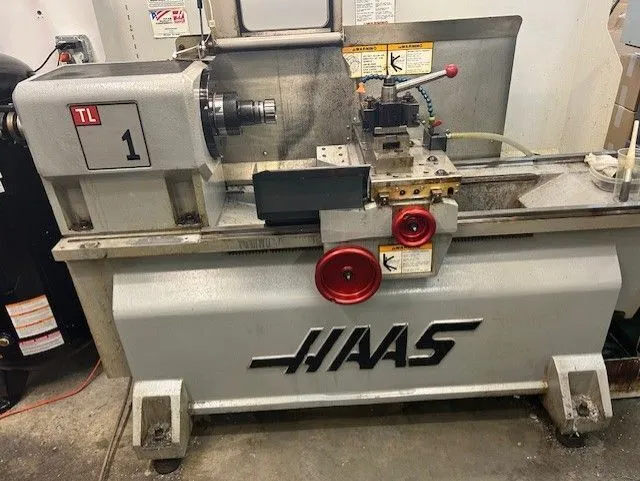

Used HAAS TL-1 CNC Toolroom Lathe New in 2005 20" swing, 30" length, 8" chuck, and 2.25" bar capacity. Low hours!
Swing20"508 mm
Machining Length30"762 mm
# Axis22
Chuck Size8"203.2 mm
Bar Capacity2.25"57.15 mm
Power12 hp8.9 kW
Max RPM2,000 RPM2,000 RPM
Turning Dia16"406.4 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (Haas)CNC (Haas)
Dimensions78″ × 55″78″ × 55″
Weight4500 lbs4500 lbs

Key Specifications:

Spindle Motor Power: 10hp
Spindle Speed: 1,800 rpm
Spindle Nose: A2-5 S
Spindle Bore: 2.5″
Bar Capacity: 2.25″
X-Axis Travel: 8″
Z-Axis Travel: 30″
Maximum Cutting Diameter: 16″
Maximum Swing: 16″
Chuck Size: 8″
Power Requirement: 220V/3 phase
Machine Dimensions: 78″ × 55″
Machine Weight: 4,500 lbs

All specifications are for reference only and must be confirmed by the buyer.

Additional Features:

Tailstock,
Coolant pump,
USB emulator,
15" color LCD monitor,
Intuitive programming system.
5C collet
8" chuck also included

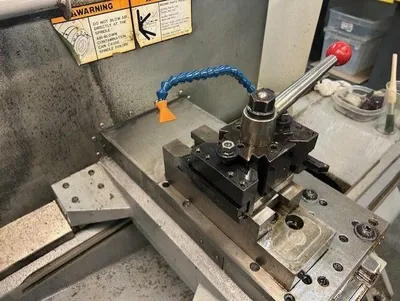

Updated with a manual indexable 4 station tool post and an assortment of holders.
Dual battery backup for memory installed just last year.

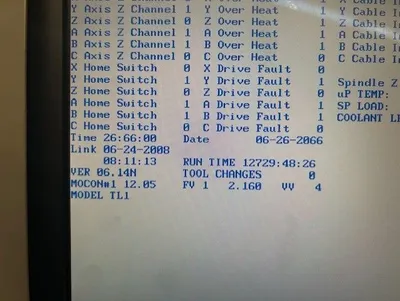

Current Total Run time is 12,800 hours.
Still hooked up to power and will be used from time to time for secondary work until sold.
