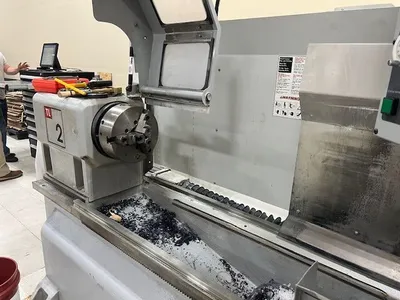

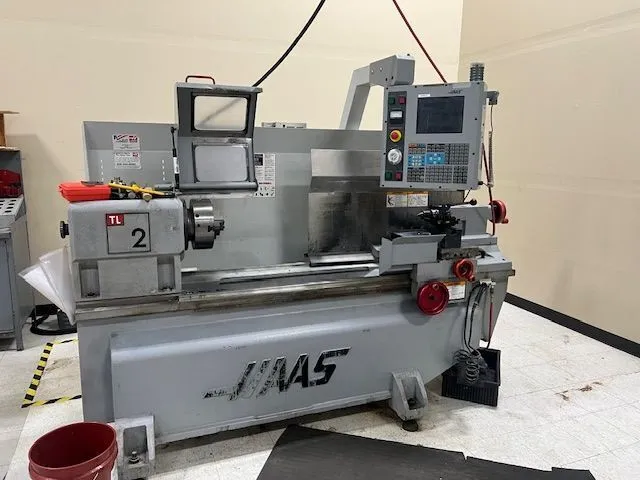

Used 2004 HAAS TL-2 | CNC Lathes
Have one to sell?
ConditionUsed
1 available
HAAS TL-2 CNC Lathe 20" swing and 48" machining length. 8" chuck, 12 hp.
New in 2004
Super Low Hours!
Haas TL-2 CNC Lathe Specifications:
***All OEM specifications are for reference only. All specs and included items must be confirmed by the buyer prior to purchase.***

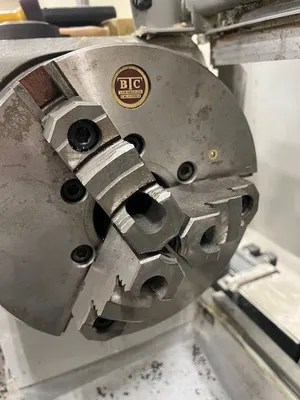

Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 8"
Z Axis Travel: 48"
Rapid Rate Z Axis: 450 IPM

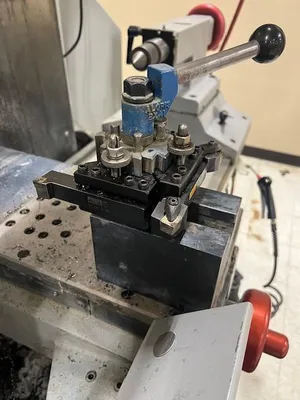

Tools: 4 Tool Indexable Quick-Change Toolpost
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 48"
Max Swing: 16"
Bar Capacity: 2"
Spindle Nose A2-5
Max Torque 108 ft-lbf @ 355 rpm
Dimensions: 111" x 71" x 83"
Weight: 4,480 LBS
HAAS TL-2 CNC Lathe 20" swing and 48" machining length. 8" chuck, 12 hp.
New in 2004
Super Low Hours!
Imperial
| Swing | 20" |
| Machining Length | 48" |
| # Axis | 2 |
| Chuck Size | 8" |
| Power | 12 hp |
| Max RPM | 2,000 RPM |
| Turning Dia | 16" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |

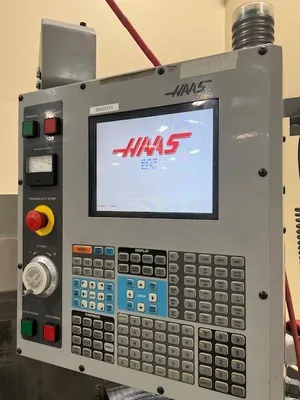

| Control | CNC (Haas) |
| Dimensions | 111" x 71" x 83" |
| Weight | 4,480 lbs |
Haas TL-2 CNC Lathe Specifications:
***All OEM specifications are for reference only. All specs and included items must be confirmed by the buyer prior to purchase.***
Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 8"
Z Axis Travel: 48"
Rapid Rate Z Axis: 450 IPM
Tools: 4 Tool Indexable Quick-Change Toolpost
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 48"
Max Swing: 16"
Bar Capacity: 2"
Spindle Nose A2-5
Max Torque 108 ft-lbf @ 355 rpm
Dimensions: 111" x 71" x 83"
Weight: 4,480 LBS
