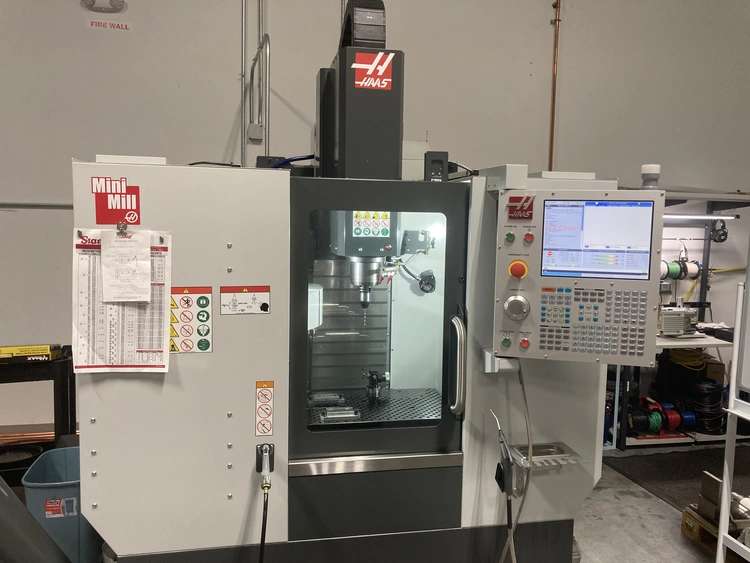

Used 2023 HAAS MINI MILL | Vertical Machining Centers

Travels S.A.E METRIC
X Axis 16.00 in 406 mm
Y Axis 14.00 in 356 mm
Z Axis 15.00 in 381 mm
Spindle Nose to Table (~ max) 19.0 in 483 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm

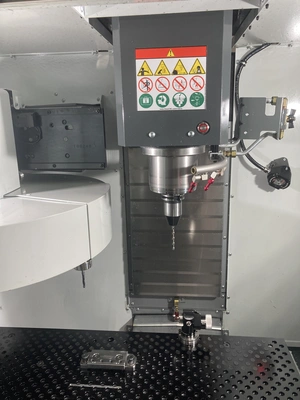

Spindle S.A.E METRIC
Max Rating 10.0 hp 7.5 kW
Max Speed 8000 rpm 8000 rpm
Max Torque 45.0 ft-lbf @ 500 rpm 61.0 Nm @ 500 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive

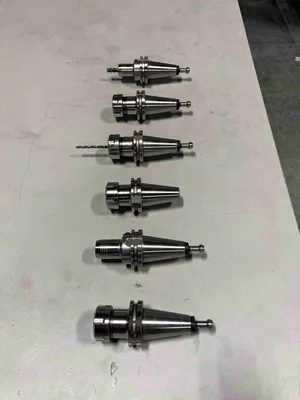

Taper CT or BT 40 CT or BT 40
Bearing Lubrication Grease Packed Grease Packed
Cooling Air Cooled Air Cooled
Table S.A.E METRIC
Length 36.0 in 914 mm
Width 12.0 in 305 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.33 in 110 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 500 lb 227 kg
Feedrates S.A.E METRIC
Max Cutting 650 ipm 6.5 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 800 ipm 20.3 m/min
Rapids on Z 800 ipm 20.3 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2000 lbf 8896 N
Max Thrust Y 2000 lbf 8896 N
Max Thrust Z 2000 lbf 8896 N

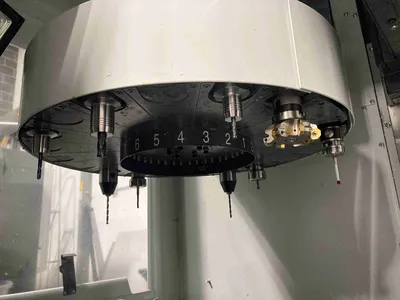

Tool Changer S.A.E METRIC
Type Carousel Carousel
Capacity 10 or 20 10 or 20
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Length (from gage line) 12 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 4.20 s 4.20 s
Chip-to-Chip (avg) 5.00 s 5.00 s
General S.A.E METRIC
Coolant Capacity 45 gal 170 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 8000 rpm 8000 rpm
Spindle Power 10.0 hp 7.5 kW
Input AC Voltage (1 Phase) 220 VAC 220 VAC
Full Load Amps (1 Phase) 40 A 40 A

Dimensions - Shipping S.A.E METRIC
Domestic Pallet 90.0 in x 80.0 in x 92.0 in 229 cm x 203 cm x 234 cm
Export Pallet 90.0 in x 80.0 in x 92.0 in 229 cm x 203 cm x 234 cm
Weight 4450 lb 2018.5 kg
