Used 2025 LEADWELL V-50L | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available

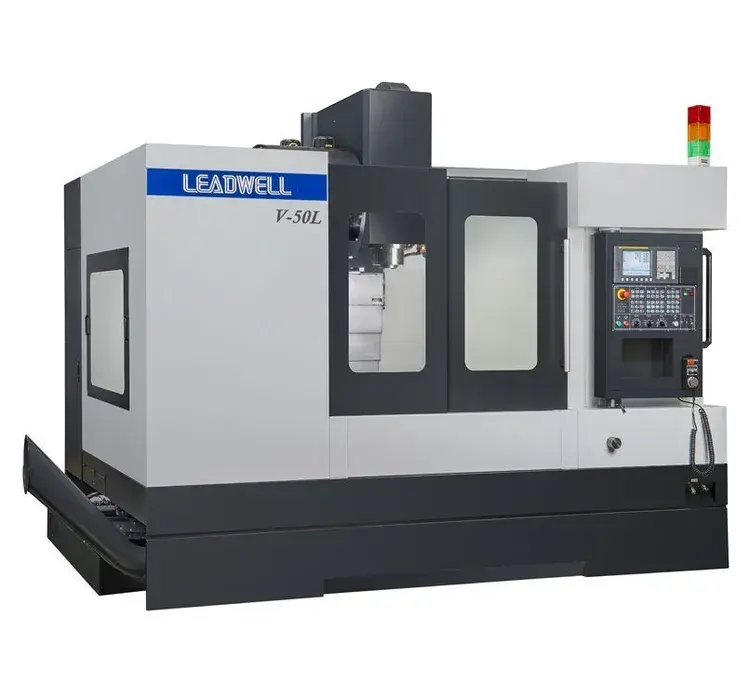

2025 LEADWELL V-50L Vertical Machining Center, In-stock
Featuring X/Y/Z travels of 50"/25"/24", 10,000 RPM spindle, Includes chip conveyor.
Leadwell V-50L Specifications:
CNC CONTROL: FANUC 0i-MF
X/Y/Z Axis Travel: 50 inches/25 inches/24 inches
Table size 55.91 x 24.02 inches
Max workpiece weight: 2645.55 lbs.
Spindle speed: 10,000 RPM
Max. spindle torque (30min): 86.92 lb-ft.
Feed rate (Each Axis) 1417.32 inches per minute
Tool storage cap: 24 (BT-40 / CT-40)
Max. tool length: 11.81 inches
Spindle motor (cont./30min): 20.11 / 24.78 HP
X/Y/Z- Axis feed motor (each axis): 5.37 HP
Power supply: 35 KVA /
Machine size: 151.18 x 86.61 x 107.13 inches.
STOCK MACHINE EQUIPPED AND READY TO SHIP WITH THE FOLLOWING. F.O.B Chicago.
OPTIONS INCLUDED WITH THIS MACHINE:
Full enclosed splash guard,
Heat exchanger,
Rigid tapping,
Coolant Flushing system
Spindle oil chiller,
Spindle air purge,
Air gun & coolant gun,
Top cover & Pallet packing.
Additional OPTION INCLUDED: Chip conveyor (Chain type) + bucket.
*4/5 axis rotary table is available separately
