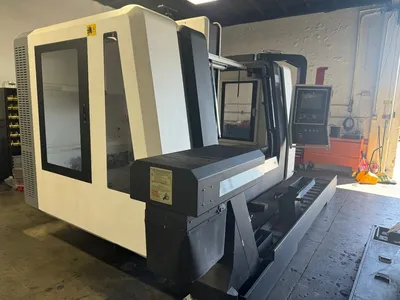

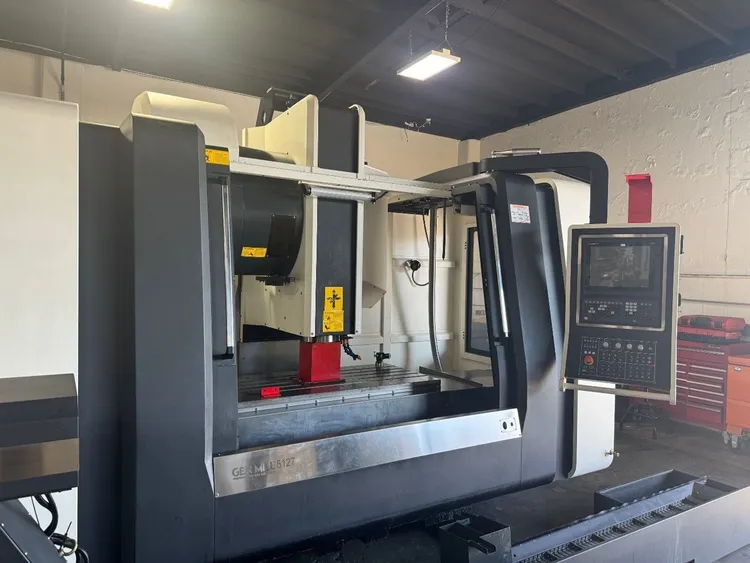

2019 EXPAND MACHINERY GENMILL 5127

GEN MILL 5127 TECHNICAL SPECIFICATIONS:

OEM Specifications are reference only.
All specs and Equipped-with Items must be confirmed by the buyer.

AXIS TRAVEL
X- Axis Travel 51.27” 1,300 mm
Y-Axis Travel (4-Linear cross ways) 27. 56” 700 mm
Z-Axis Travel 25. 59” 650 mm
Spindle Nose to Table Surface 5.9”– 31.5” 150 – 800 mm
Spindle Center to Z-axis covers 28.96” 735 mm(throat dim.)

TABLE Hardened & ground table & T-slots
Table Size (LxW) 57.98 x 27.56” 1,450 mm X 700 mm
T-slots - 5 T-Slots 0.709” slot width 18 mm on 100 mm centers
Max. Table Load 4,850 lbs. 2,200 kgs load

SPINDLE
Spindle Motor – S1/S2/S3 = 15/18.5/26kw, 35-HP S3 Power,
25-HP (30-minute duty-rate)
Spindle Speed – Inline Direct-Drive 12,000 rpm
Spindle Torque 110 ft-lb @ 1,400 rpm
Spindle Taper Material / Hardness HRC 58-62 SCM 415
Spindle Orientation By sensor
Spindle Runout ≤ 0.000040 T.I.R.
Retention System / Holding Capability Bellville Spring Stack 1,650-1,760 lbs.
Retention Knob (pull stud) C40-4502H (coolant) Japanese Standard

AXIS FEEDS
Accuracy X, Y, & Z axis (JIS6338) ± 0.0002” / 12” ± 0.005 mm over 300 mm travel
Repeatability X, Y, & Z axis (JIS6338) ± 0.0001” / 12” ± 0.003 mm over 300 mm travel
Least Input Command Increment 0.0001” / 0.000040” 0.001 mm /(40-millionths in metric)
Rapid Traverse X and Y / Motor HP 984 ipm / 6-HP 25 m / minute / 4.5 kw
Rapid Traverse Z / Motor HP 984 ipm / 6-HP 25 m / minute / 4.5 kw
Ballscrews – X, Y, Z X, Y= 50 mm ballscrews,
10 mm pitch, (Z=40 mm)
Cutting Feedrate 0.04 – 393 ipm

TOOL CHANGER
Tool Capacity – 30+1 40 Tool Twin-Arm
Tool Shank CAT#40 Taper Dual-Contact
Tool Change Time (average) 2.8-seconds tool-to-tool
Max Tool Diameter / w/adjacent tool 5.90” / 3.15” 150 mm / 80 mm
Maximum Tool Length 11.81” 300 mm
Maximum Tool Weight 15 lbs. 7 kg
Tool Selection / Tool Access Random access Bi-directional

SPECIFICATIONS
Air Service Requirements 85 psi @ 14-scfm

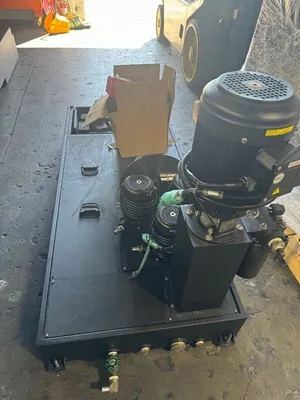

Coolant Capacity / Pressure 135 gallons / 300 PSI 510 liters

Connected load electrical requirement 220 vac ±5% 60-Hz 38 KVA
Machine Weight 19,841 pounds 9,000 kg

**Machines need a stable 220 Volts, 3 Phase** – Please use appropriate transformers or voltage stabilizers.
