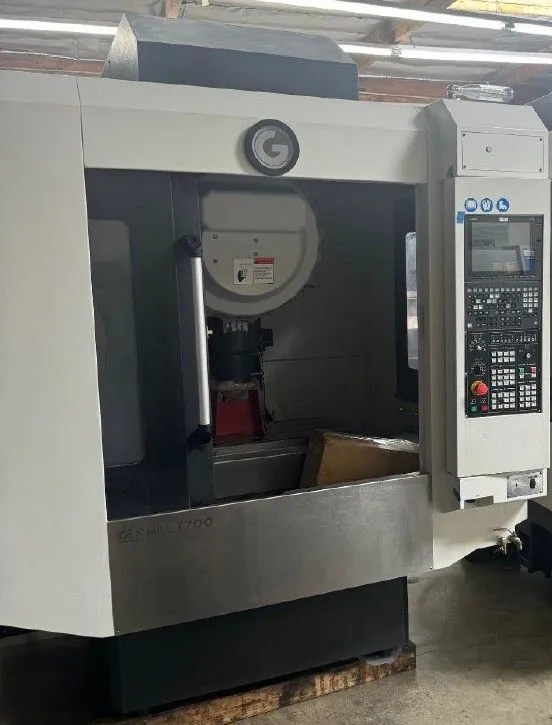

Used 2020 EXPAND MACHINERY GENMILL T700 | Vertical Machining Centers

GEN MILL T-700 TECHNICAL SPECIFICATIONS: OEM Specifications are for reference only, all specifications must be confirmed by the buyer.

AXIS TRAVEL
X-Travel 27.56” 700mm
Y-Travel 16.93” 430mm
Z-Travel 12.99” 330mm
Spindle Nose to Table Surface 5.1” – 18.1” 130 – 460mm
Spindle Centerline to Column 18.89” 480mm

WORK TABLE
Table Surface Dimension (X, Y) 33.4” x 15.75” 850 x 400mm
T-Slot Dimension / Spacing 3-14mm T-slots
Table Height 35” above floor 890mm
Max Table Weight for rated accuracy 550 pounds 250kg @ 60m/min

SPINDLE
Spindle Motor – Mitsubishi 7.5-HP 3.7/5.5kw 25% Duty-Cycle
Spindle Motor Coupling Inline Direct-Drive Spindle Drive
Spindle Speed 12,000 rpm
Synchronous Tapping Speed Limit 6,000 rpm
Tapping Performance in production M20x2.5 in aluminum M14x2.0 in steel
Drilling Performance in production 38mm in aluminum 25mm in steel
Spindle Torque 26 ft-lb @ 1,500 rpm 25% Duty-Cycle
Tool Type CT / BT #30 4-bearing spindle – 2-top, 2-bottom

AXIS FEEDS
Rapid Traverse - X/Y/Z 2,362 ipm 60/60/60m / minute
Rated Cutting Feedrate - X/Y/Z 0.04 - 1181 ipm 30/30/30m/min.
Mechanical Way System – X/Y/Z Roller-Bearing Ways Roller-Ways -
30/30/35mm width
Axis Drive Motor Power – X, Y / Z 2.0-HP / 3.0-Hp 1.5kw / 2.2kw with brake
Axis Thrust Force – X, Y / Z 3335 lbs. / 3692 lbs. 14840 N / 16430 N
Ballscrews – X, Y, Z 32mm ballscrews 16mm pitch
Positioning Accuracy - X/Y/Z ±0.00015” ±0.004mm
Positioning Repeatability - X/Y/Z ±0.00008” ±0.002mm
Least Input Command Increment 0.0001” / 0.000040” 0.001mm / (40-millionths in metric)

TOOL CHANGER
Tool Capacity 21-Tools Drum Turret
Tool Shank BT#30 MAS P30T-1 Pull-Stud
Tool Change Time 1.6-sec. Tool-to-Tool Servo motor driven
Maximum Tool Diameter – with adjacent tool 2.36” / 3.15” 60mm / 80mm with no adjacent tool
Maximum Tool Length / Max. Tool Weight 7.87” / 6.6 lbs. 200mm / 3 kg
Tool Selection / Tool Access Random access Bi-directional shortest path

AIR / ELECTRICAL SPECIFICATIONS
Air Service Requirements 85 psi @ 5-scfm 6 Kg/cm2
Electrical Requirements - connected load 16kva, 40 Amps 220vac ±5%, 60-Hz
Coolant Tank Capacity 32-gallons 120 liters
Coolant Pump - Cutting Tools – HP / Pressure 1.0-HP / 45 PSI .75kw Grundfos MTH4-30/3A
Coolant Pump – Chip Flush Pump 1.0-HP .75kw

Floor space requirements (W x D x H) 73” x 87” x 95” 125x221x241cm (+ chip conveyor)
Machine Weight 6,770 pounds 3,070 kg

Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers.
