Used 2023 MILLER FILTAIR Capture 5 | Dust & Fume Collectors

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

Dust & Fume Collectors

Manufacturer:

Model:

FILTAIR Capture 5

Year:

2023

Stock #:

323219

Status:

For Sale

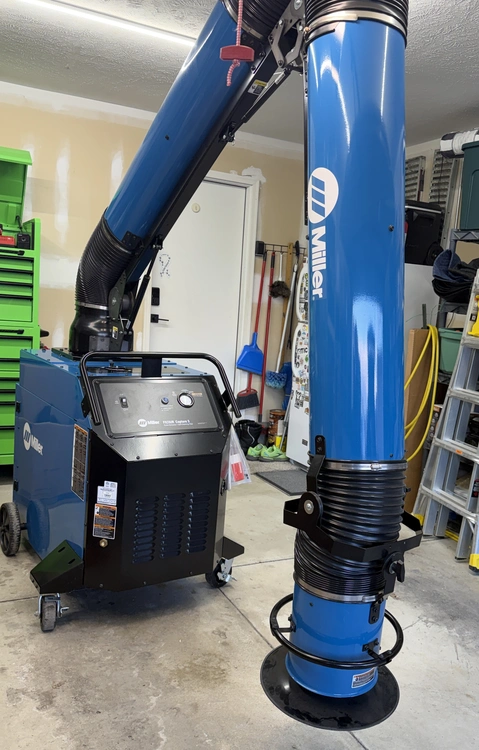

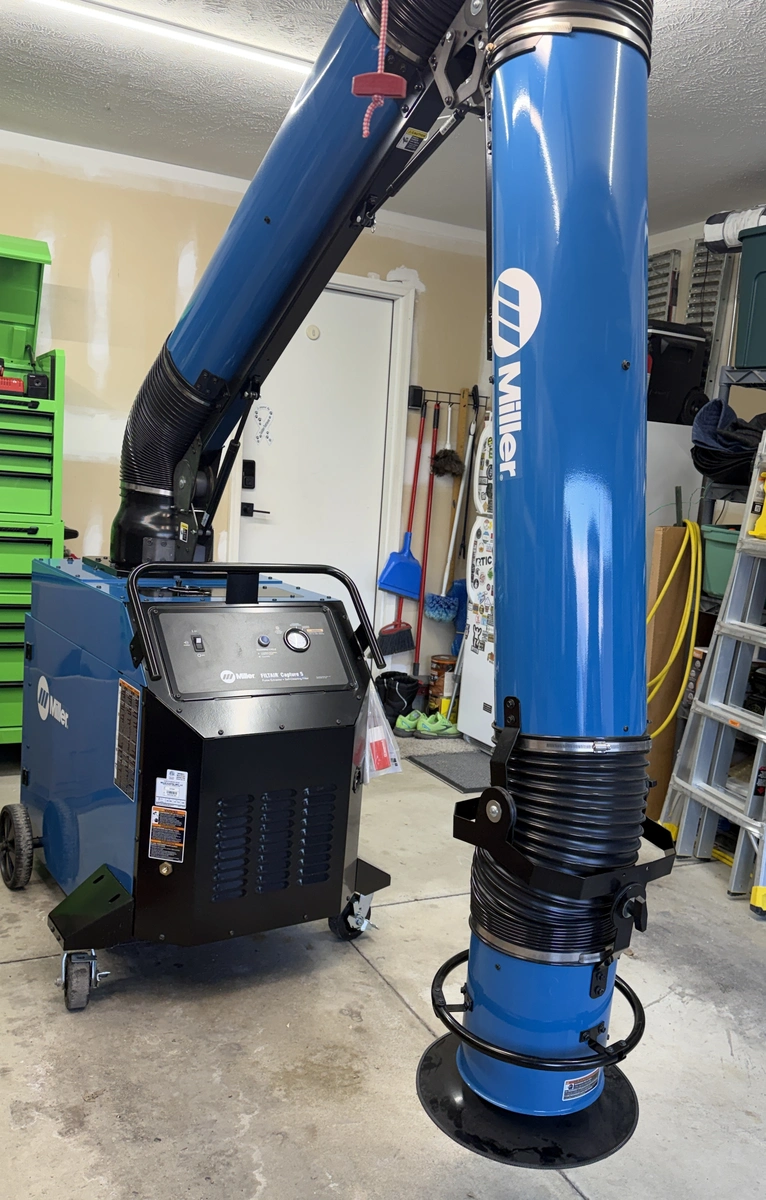

Used MILLER FILTAIR Capture 5 Dust Collector,
New in 2023
Ideal for effective air filtration in industrial settings.

ImperialMetric

Flow Rate	900 ft³/min.	900 ft³/min.
Power	3 hp	2.2 kW

Processes:
Stick (SMAW)
Flux-cored (FCAW)
MIG (GMAW)
TIG (GTAW)

Filter Media 452 sq. ft. (42 sq. m)
Accu-Rated™
Airflow
Measured at the hood: 900 cfm (425 L/sec.)

Extraction Arm 10 in. (254 mm) diameter
10 ft. (3 m) length
Sound Level at 5 ft. (1.5 m)
Approximately 77 dBA
Motor Specifications 3 hp, 3,450 rpm

Input Power 208/230 V, 1-phase, 60 Hz
or 460 V, 3-phase, 60 Hz

Dimensions H: 43 in. (1,092 mm)
W: 36 in. (915 mm)
D: 48 in. (1,219 mm)

Net Weight 660 lb. (300 kg)
for extractor with 12 ft. arm
