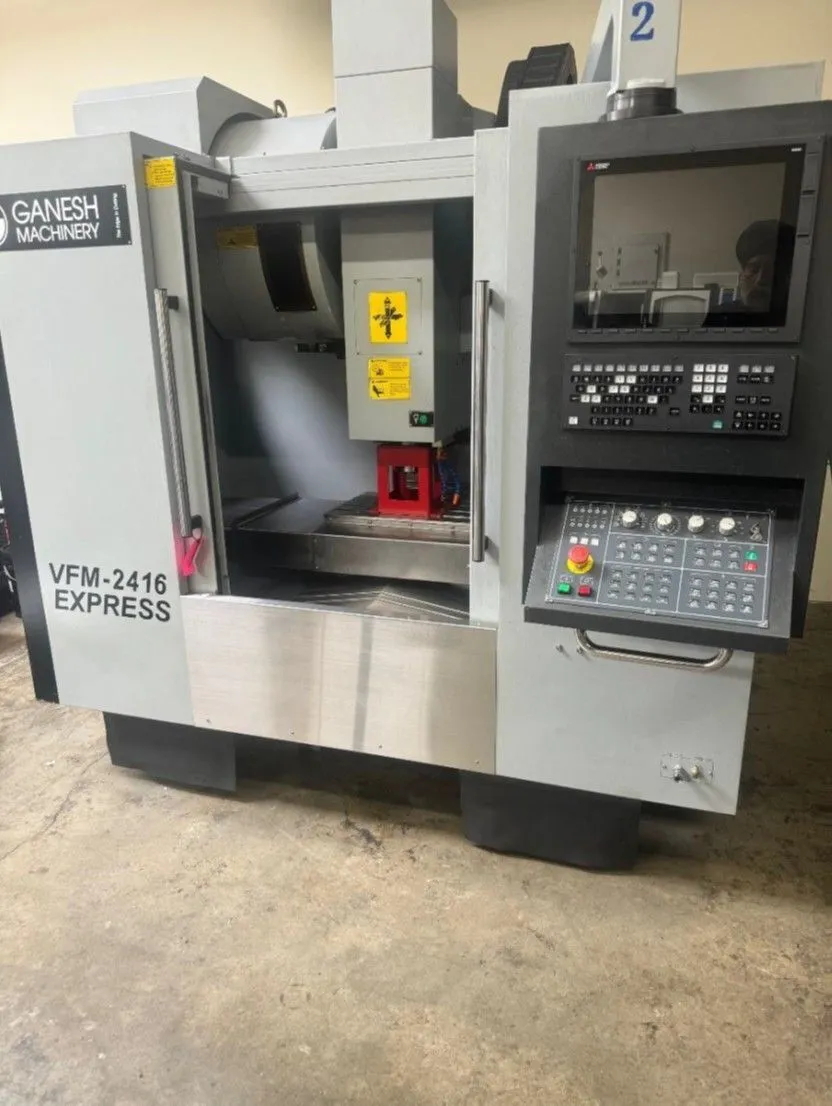

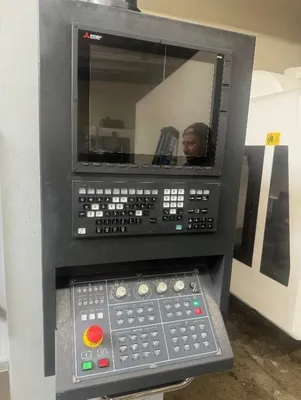

Used 2016 GANESH VFM-2416 | Vertical Machining Centers

GEN MILL-2416 TECHNICAL SPECIFICATIONS: **All OEM Specifications are for reference only. All specs and Equipped-with Items must be confirmed by the buyer.**

AXIS TRAVEL
X-Travel 24.01” 610mm
Y-Travel 15.75” 400mm
Z-Travel 17.72” 450mm

Spindle Nose to Table Surface 5.11”– 22.83” 130 – 580mm
Spindle Center to Z-axis way covers 15.35” 390mm (throat dimension)

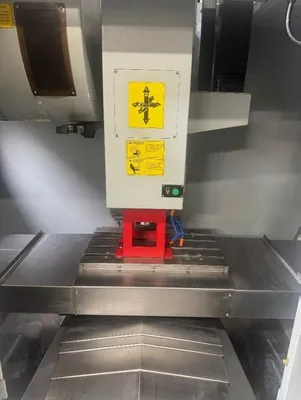

TABLE Hardened & ground table & T-slots
Table Size (LxW) 25.59” x 15.75” 650mm X 400mm
T-slot width (3 T-slots total) 18 mm on 100mm centers
Max. Table Load 882 lbs. 400 kgs load

SPINDLE
Spindle Motor – S1/S2/S3=5.5/7.5/11kW 15-HP S3 Power 10-HP 30-min duty rating
Spindle Speed – Inline Direct-Drive 12,000rpm (15,000rpm optional)
Tool Type CAT #40 Taper BT #40 optional
Spindle Taper Material / Hardness SCM415 / HRC 58-62
Spindle Runout ≤ 0.000040” T.I.R.
Spindle Bearings - Front 95mm NSK 70BNR P4 class-7 bearings x2
Spindle Bearings - Rear 95mm NSK 70BNR P4 class-7 bearings x2
Retention System / Holding Capability Bellville Spring Stack 1650-1760 lbs
Retention Knob (pull stud) C40-4502H (coolant) Japanese Standard

AXIS FEEDS
Accuracy X, Y, & Z axis (JIS6338) ± 0.0002” / 12” ± 0.005mm over 300mm travel
Repeatability X, Y, & Z axis (JIS6338) ± 0.0001” / 12” ± 0.003mm over 300mm travel
Least Input Command Increment 0.0001” / 0.000040” 0.001mm / (40-millionths in metric)
Rapid Traverse X, Y / Z 1,417 / 1260 ipm 36m / 32m minute
Cutting Feedrate 0.02 - 393 ipm 10m / minute
Axis Drive Motor Power – X, Y 2.7-HP 2.0kw
Axis Drive Motor Power - Z 3.35-Hp 2.5kw
Ballscrews – X, Y, Z 32mm ballscrews 12mm pitch
Linear Ways – X / Y / Z 30 / 35 / 35 mm Premium Cross-Roller

TOOL CHANGER
Tool Capacity (24+1) 24-Tool Twin-Arm Hi-Speed Tool Changer
Tool Shank CAT#40 Taper BT#40 optional
Tool Change Time 1.7-sec. tool-to-tool
Maximum Tool Diameter / w/adjacent tool 5.90” / 3.15” 150mm / 80mm
Maximum Tool Length (from gage line) 11.81” 300mm
Maximum Tool Weight 15 lbs. 7kg
Tool Selection / Tool Access Random access Bi-directional shortest path

SPECIFICATIONS
Air Service Requirements 85 psi @ 14-scfm
Electrical Requirements - connected load 220vac ±5%, 60-Hz 50-Amp Service 25 KVA
Coolant Capacity 68-gallons 256 liters
Floor space requirements (W x D x H) 87” x 73” x 113” 218x186x288cm (add 44” for conveyor)

Shipping dimensions (W x D x H) 97” x 91” x 101” 246x229x256cm
Machine Weight 9.923 pounds 4,500 kg
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers.
