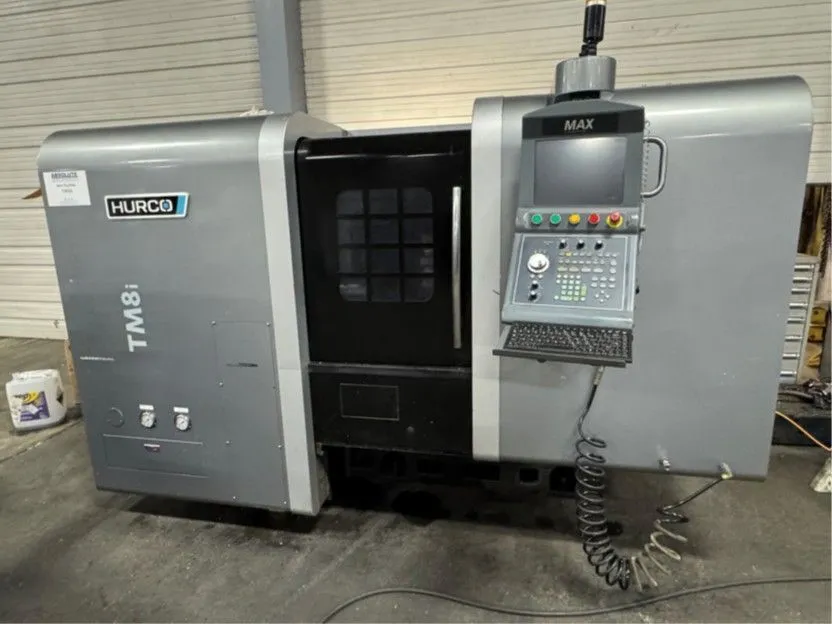

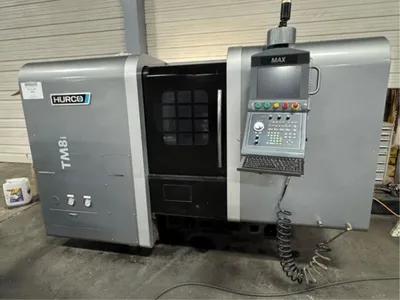

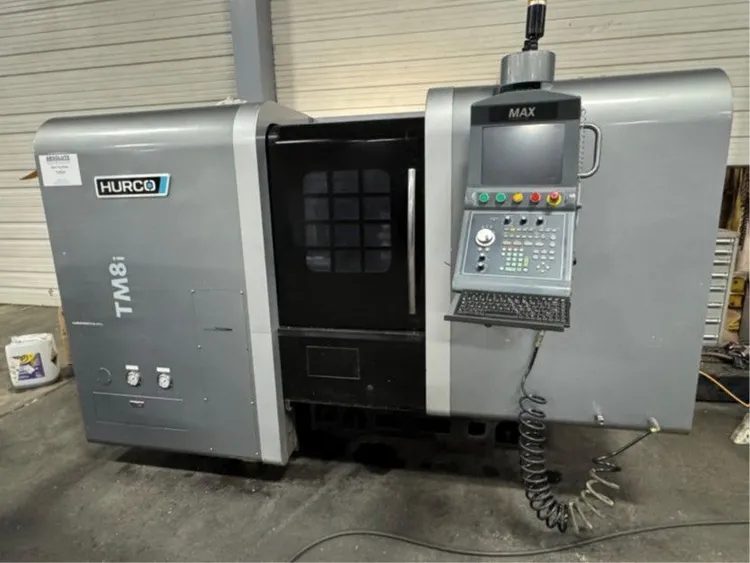

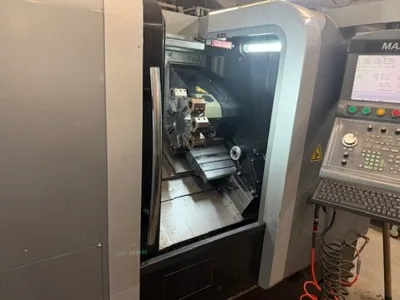

Used 2013 HURCO TM8I | CNC Lathes

HURCO TM8i Specifications: ** All OEM SPECIFICATIONS ARE FOR REFERENCE ONLY. All specs and equipped-with items must be confirmed by the buyer**

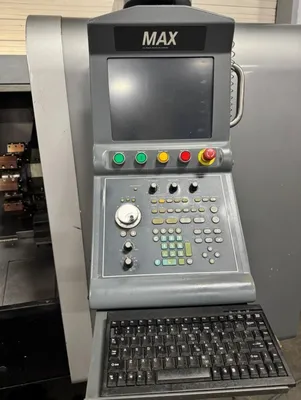

CNC Control: Hurco WinMax
Distance Between Centers 23.49 in (597 mm)
Swing Over Bed Diameter 20.67 in (525 mm)
Swing Over Cross Slide Diameter 11.8 in (300 mm)
Max. Turning Diameter 14 in (356 mm)
Max. Turning Length 20.67 in (525 mm)
Max. Bar Capacity 2.5 in (64 mm)
X, Z Axis Travel 8, 21.65 in (203, 550 mm)

Feed rate: 1,181 in/min (30m/min)
Rapid Traverse - X,Z Axes 1,181 in/min (30 m/min)

Spindle:
Max. Spindle Speed 4,000 rpm
Max torque high gear 133.83 ft lbs @ 1,000 rpm (100.7 Nm @ 1,000 rpm)
Spindle Power 25.48 hp (19 kW)
Spindle Nose A2-6

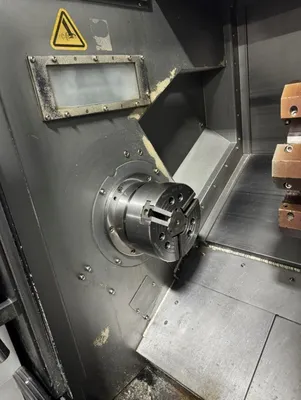

Chuck Diameter 8.2 in (210 mm)

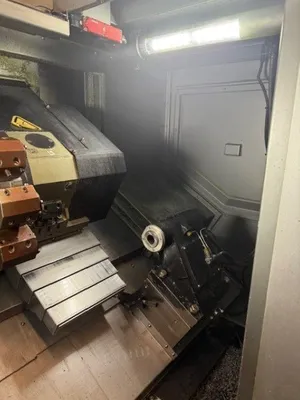

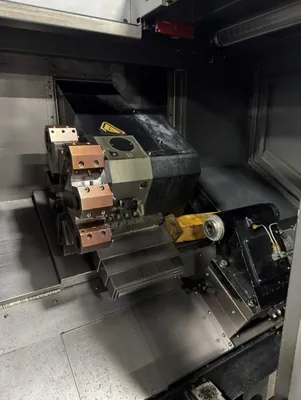

Turret Tool Capacity: 12 stations
Turret Index Time-Adjacent 1.3 seconds
Turret Index Time-Furthest 3.6 seconds

Overall Dimensions: 170.7 x 122.6 in (4,336 x 3,114 mm)
Machine Height 86.32 in (2,193.0 mm)
Machine Weight 8,885 lb (4,030 kg)
