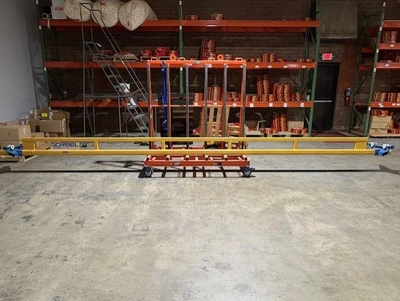

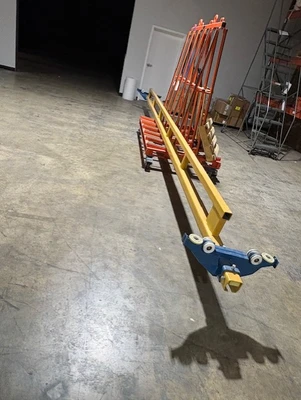

2015 GORBEL ONE TON GANTRY GRANE

All OEM Specifications are for reference only. All specs and equipped-with items must be confirmed by the buyer.

Capacity: 2000 lbs/BR
Bridge OAL: 23'
Span: 21'

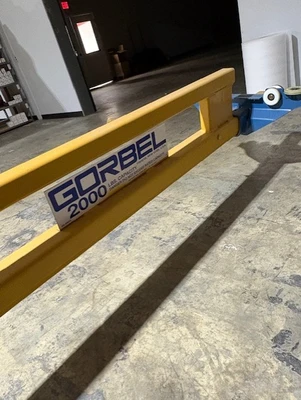

Bridge Series: 2000
Runway OAL: 58''
Runway Series: 2000
Height: 14' 8.125"
Trolley Height 12'

Additional Dimensions are available on the attached PDF drawing.

Support assemblies are designed to AISC Specifications. If no movement of support assemblies is required, then bracing to building steel is recommended (not included) Bridge Trolley Travel is 19' 8.43". Endtruck Travel is 55' 3.5"

Hangers are on 30' Centers Max, with a 48" cantilever on each end standard.
Hanger Position Tolerance +/- 3.5"
Hangers must be within 48" of splice joint
Dimensions are steel to steel and may vary.
