Used 2022 SHOPSABRE PRO408 | CNC Routers
Have one to sell?
ConditionUsed
1 available

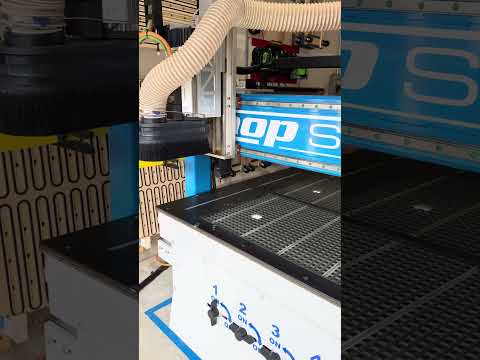

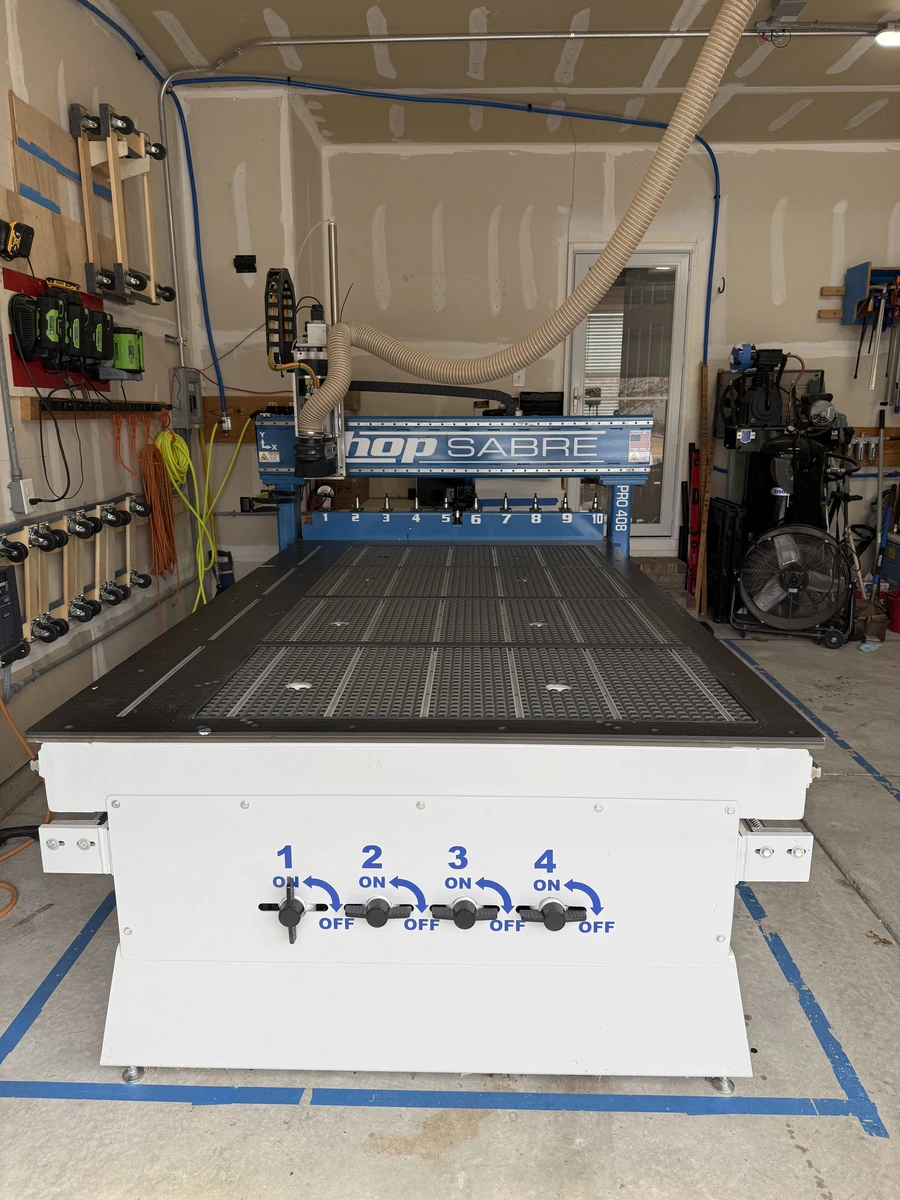

Used SHOPSABRE PRO408 CNC Router,
New in 2022.
Like-New Condition!
Featuring a 63"x133" table, 5 hp motor, and 24,000 RPM,4th Axis Ready.
**All OEM Specifications are for reference only.
All specs and equipped-with items must be confirmed by the buyer.**
Specifications:
Table Size: 4x8
Spindle Speed: 24,000RPM
Spindle Motor: 4HP
Single Phase power
Drive System: Ball Screw X, Dual Y, & Z axis
Drive Motors: AC Servo Motors
Positional Repeatability: +/-.001"
Rapid Speed: 1200IPM
X Axis Travel: 100"
Y Axis Travel: 60"
Z Axis Travel: 12"
Automatic Tool Changer (ATC)
10 tool holders
Bits (1/2" down to 1/4" — upcut, dow-ncut, compression, V-bits, etc.)
Dust dock for dust collection connection
Two dust shields
ShopSabre computer system with monitor and computer stand
WinCNC control software
Wall-mounted spindle controller (VFD)
All original ShopSabre components and accessories
4-Zone Vacuum Hold-Down System:
Standalone vacuum unit with 4 independent motors
Hold down full sheets or small parts without clamps or screws
113.5 total spindle hours
Available separately or as a package:
Air Compressor + Dryer System:
60 gallon tank capacity compressor
Harbor Freight air dryer
Two additional inline dryers (three-stage drying total of
clean, dry air to the ATC and pneumatic systems)
Dust Collection System
Grizzly 1.5 HP dust collector with 2-micron filter bag
Oneida-style cyclone separator (Dustopper/Dust Deputy)
with 35-gallon collection drum directly connected.
